category:
Air and Dirt Separators and Air Vents
height:
12"
instruction_sheet:
https://www.caleffi.com/sites/default/files/media/external-file/38456_NA_0.pdf
length:
3.5"
manufacturer:
Caleffi
mpn:
NA551100A
subcategory:
DISCAL® Air Separators
technical_brochure:
https://www.caleffi.com/sites/default/files/media/external-file/01060_NA.pdf
type:
DISCAL® (ANSI Flange)
weight:
16.9 LB
width:
20"
Instruction Sheet Product Overview

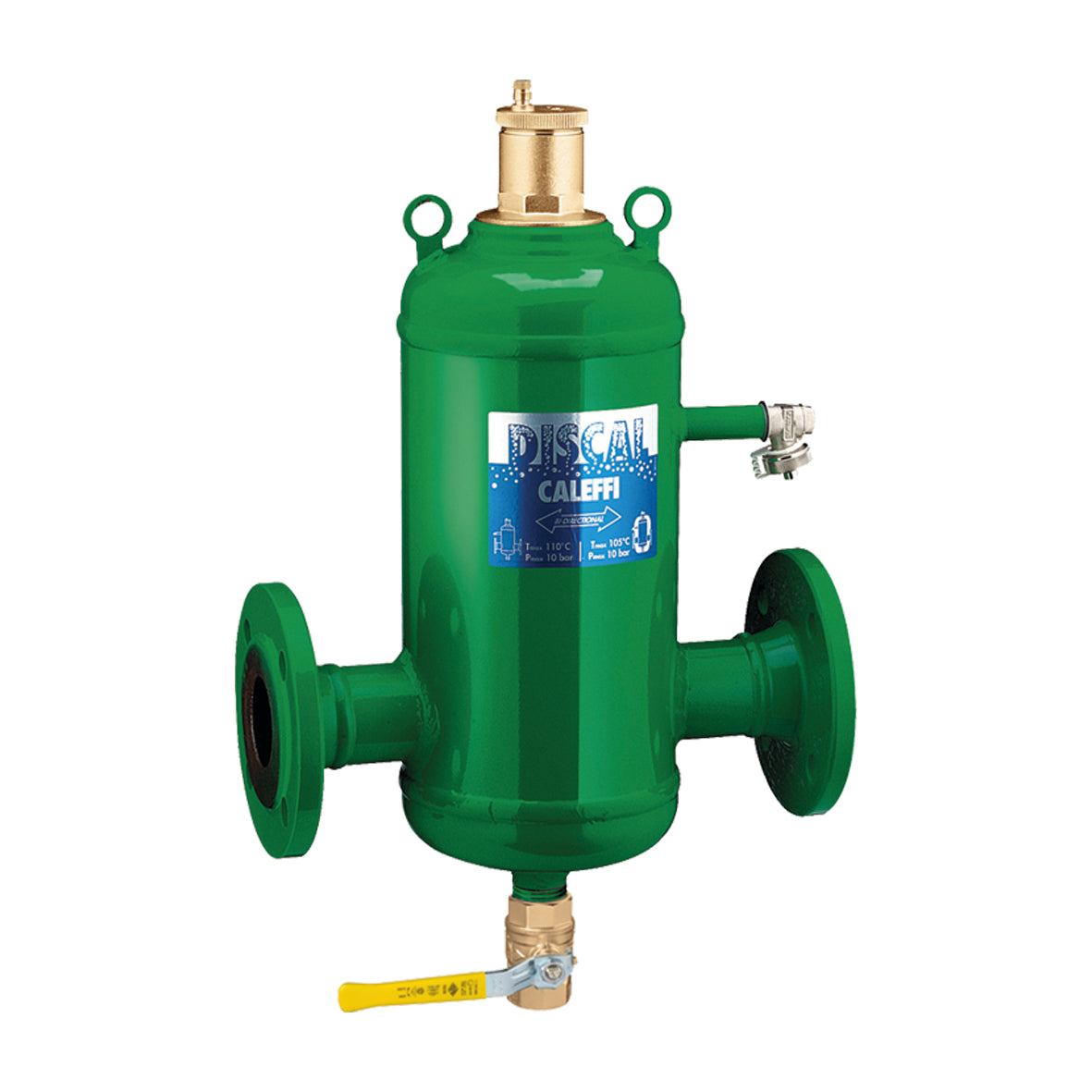

Air separator (ASME & CRN, 2-6") ASME and CRN registered. Complete with drain valve (NA39753), side drain valve (538402FD). Stainless steel float guide pin and linkage. Stainless steel mesh internal element. 1" M NPT male bottom drain connection. 1/2" NPT male side drain connection.
Additional Information
Connection 4" Ansi 150 Flange, Asme & Crn
Maximum Working Pressure 150 Psi
Medium Temperature Range 32–270 °F
Material Steel
