White Rodgers

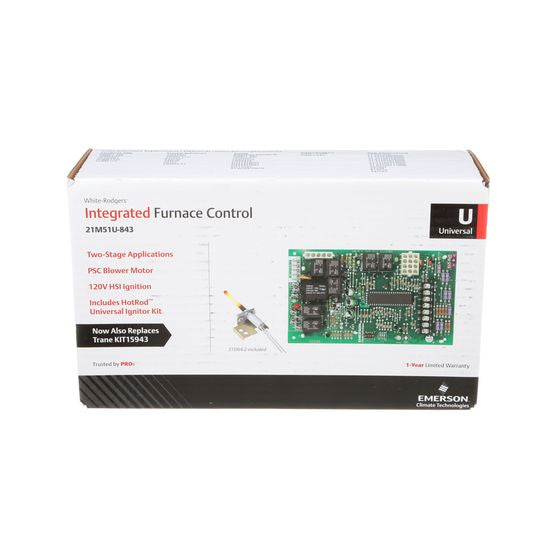

21M51U-843, Integrated Furnace Controls Universal Replacement

21M51U-843, Integrated Furnace Controls Universal Replacement

In Stock - 1 (Available by Mon, Dec 09 - Fri, Dec 13)

SKU SKU:kpi002-21M51U-843

Regular price $248.64 USD
Regular price Sale price $248.64 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
availability: In stock
category: Electric & Heating Controls
country_of_origin: MX
custom_label_2: in-stock
manufacturer: White Rodgers
mpn: 21M51U-843
subcategory: Integrated Furnace Control

Product Description

White Rodgers - 21M51U-843 Universal two-stage integrated furnace control for PSC blower motors includes a universal 120V nitride ignitor for 80V or 120V hot surface ignition systems.

Features:

  • Reduces inventory by replacing most White-Rodgers 50A51, 50M51, and 50M61 and other two-stage HSI controls with 80V or 120V ignitor.
  • Includes a universal 120V nitride ignitor to allow replacement of 80V and 120V controls
  • Diagnostic LED indicators streamline installation and system troubleshooting
  • 120V air cleaner output and 120V humidifier output up to 1 Amp max
  • Added dipswitches to trial for ignition and blower delays
  • Additional blower motor wire extensions
  • Trane ignitor mounting bracket is included

Additional Information

AccessoriesIncludes Ignitor
Amp Rating14.5 FLA-25.0 LRA @ 120 Vac (Circulator Relay)
Ambient Operating Temperature-40 to 175 deg. F (-40 to 79 deg. C)
Operating Humidity5% to 93% relative humidity (non-condensing)
Multiple Input Voltages24 Vac, 120 Vac, 50/60 Hz
