category:
Electric & Heating Controls
manufacturer:
White Rodgers
mpn:
24A05A001S1
subcategory:
Electric Heat Temp Control
Product Description

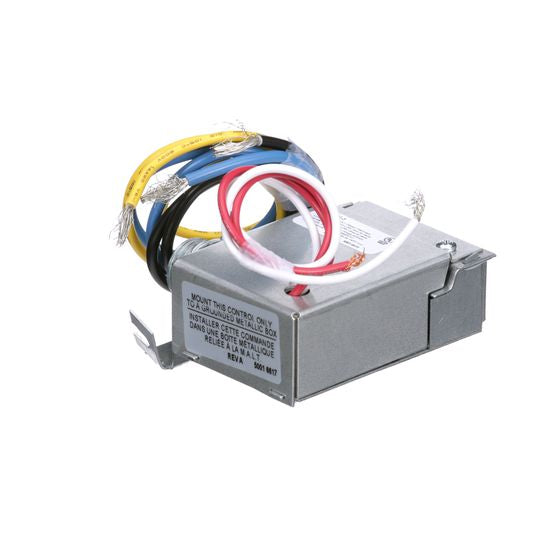

White Rodgers - 24A05A001S1 Provides silent operation and narrow differential control for heating or cooling installations
Features:
- Level-Temp allows low voltage 2-wire thermostat to control line voltage loads such as baseboard heaters
- Conduit hub or screw mounting
- Ideal for all types of electrical heat
- Non-critical mounting angle. Universal break-off mounting tabs
- Dual Level-Temp capable of controlling two separate loads
Additional Information
Length18
Voltage120 Vac/60 Hz
Switch ActionSPST-Normally Open
Overall Dimensions1.88H X 4.50W X 2.44D
Ambient Operating Temperature-20 to +140°F
Resistive Rating25A, 3000W, 120 Vac
Inductive RatingFull Load, 16A, Locked Rotor, 96A, 120 Vac
