White Rodgers

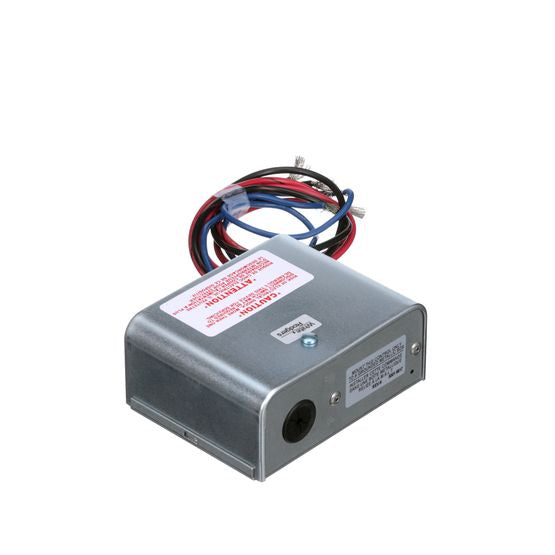

24A06G-1, 24A Series Level-Temp Control for Electric Heat

24A06G-1, 24A Series Level-Temp Control for Electric Heat

Dropship

SKU SKU:kpi002-24A06G001S1

Regular price $172.17 USD
Regular price Sale price $172.17 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Electric & Heating Controls
manufacturer: White Rodgers
mpn: 24A06G001S1
subcategory: Electric Heat Temp Control

Provides silent operation and narrow differential control for heating or cooling installations

Features:

  • Level-Temp allows low voltage 2-wire thermostat to control line voltage loads such as baseboard heaters
  • Conduit hub or screw mounting
  • Ideal for all types of electrical heat
  • Non-critical mounting angle. Universal break-off mounting tabs
  • Dual Level-Temp capable of controlling two separate loads

Additional Information

Length18
Voltage240 Vac/60 Hz
Switch ActionTwo Sets SPST-Normally Open
Overall Dimensions3.81H X 4.81W X 2.13-1/8D
Ambient Operating Temperature-20 to +120°F
Resistive Rating25A, 6000W, 240 Vac
Inductive RatingFull Load, 12A, Locked Rotor, 72A, 240 Vac
