White Rodgers

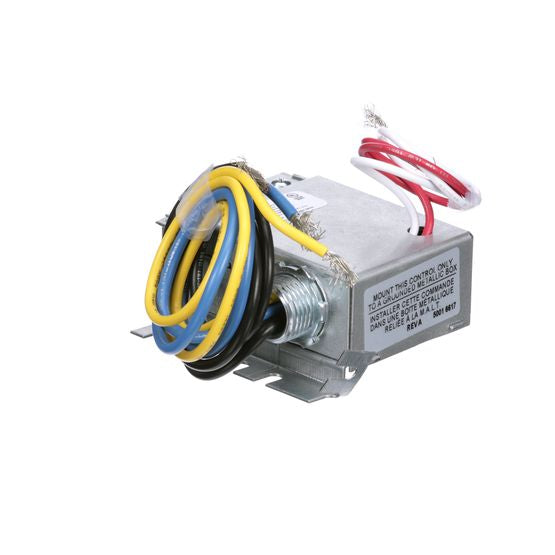

24A07E-1, 24A Series Level-Temp Control for Electric Heat

24A07E-1, 24A Series Level-Temp Control for Electric Heat

Back Order

Get it by Tue, May 27 - Sun, Jun 01

SKU kpi002-24A07E001S1

0
(0 rating)
$118.83 USD
$118.83 USD
Sale Sold out
Shipping calculated at checkout.
 More payment options
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Electric & Heating Controls
manufacturer: White Rodgers
mpn: 24A07E001S1
subcategory: Electric Heat Temp Control

Product Description

White Rodgers - 24A07E001S1 Provides silent operation and narrow differential control for heating or cooling installations

Features:

  • Level-Temp allows low voltage 2-wire thermostat to control line voltage loads such as baseboard heaters
  • Conduit hub or screw mounting
  • Ideal for all types of electrical heat
  • Non-critical mounting angle. Universal break-off mounting tabs
  • Dual Level-Temp capable of controlling two separate loads

Additional Information

Length18
Voltage208 Vac/60 Hz
Switch ActionSPST-Normally Open
Overall Dimensions1.88H X 4.56W X 1.91D
Ambient Operating Temperature-20 to +140°F
Resistive Rating22A, 5200W, 208 Vac
Inductive RatingFull Load, 12A, Locked Rotor, 72A, 208 Vac
