category:
Gas Valves
country_of_origin:
TW
manufacturer:
White Rodgers
mpn:
36C03-400
subcategory:
Furnace Gas Valve
Product Description

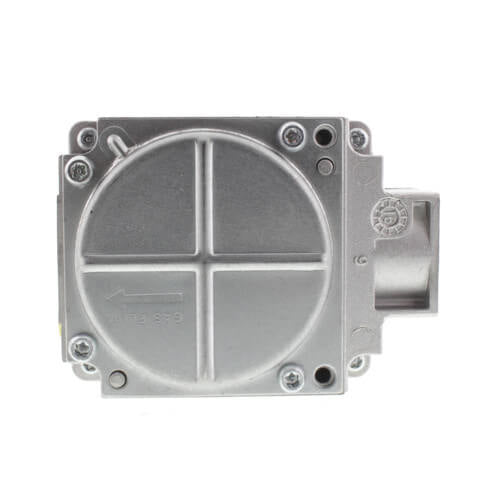

White Rodgers - 36C03-400 Ideal general purpose replacements for Standing Pilot systems.
Features:
- Line Interrupter styles use standard 30 mV Thermocouples.
- Straight through design
- Inlet/outlet reducer bushings
- Mounting position upright, or 0° to 90°From upright in any direction.
- CSA approved
Additional Information
Voltage24 Vac 60 Hz
Pipe Size3/4 in. x 3/4 in.
Flow DirectionStraight Through
Regulator Adjustment Range7.5-12.0, LP Gas
Regulator Setting3.5
Opening Style1 - Stage Fast Opening
LP Conversion Kit IncludedYes
Reducer Bushing KitYes
Side TapsNo
Inlet/Outlet Pressure TapYes/Yes
Standing Pilot with Line InterrupterYes
HSI/DSINo
Intermittent/Proven PilotNo
