category:
Gas Valves
country_of_origin:
MX
manufacturer:
White Rodgers
mpn:
36H32-214
subcategory:
Furnace Gas Valve
Product Description

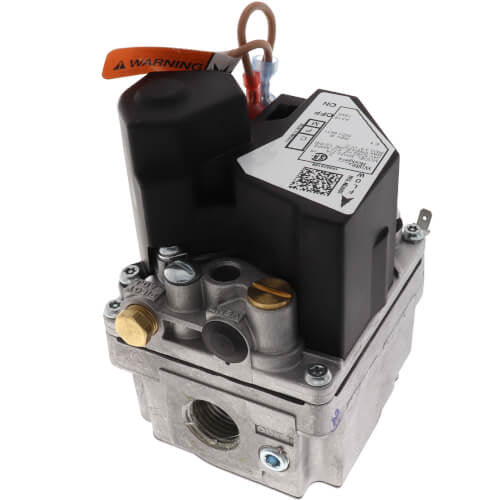

White Rodgers - 36H32-214 Electronic Ignition Gas Valve. Our highest capacity Series multi-function Combination Control covering a wide range of gas heating applications.
Features:
- Pilot port plugged for Hot Surface and Direct Spark Ignition systems, remove plug for Intermittent/Proven Pilot systems
- Fast open, single stage
- Electric on-off switch and convenient quick connect coil terminals
- Tamper resistant screws and controlled gasket compression to withstand high inlet pressures
- Mounting position upright, or 0° to 90°From upright in any direction
- CSA approved
Additional Information
Voltage24 Vac 50/60Hz
Pipe Size1/2 in. X1/2 in.
Flow DirectionStraight Through
Regulator Adjustment Range5.0-12.0, LP Gas
Regulator Setting3.5
Opening Style1 - Stage Fast Opening
LP Conversion Kit IncludedYes
Side TapsNo
Inlet/Outlet Pressure TapYes/Yes
Standing Pilot with Line InterrupterNo
HSI/DSIYes
Intermittent/Proven PilotYes
Reducer BushingKitNo
