availability:
In stock
category:
Gas Valves
country_of_origin:
MX
custom_label_2:
in-stock
manufacturer:
White Rodgers
mpn:
36H65-401
subcategory:
Furnace Gas Valve
Product Description

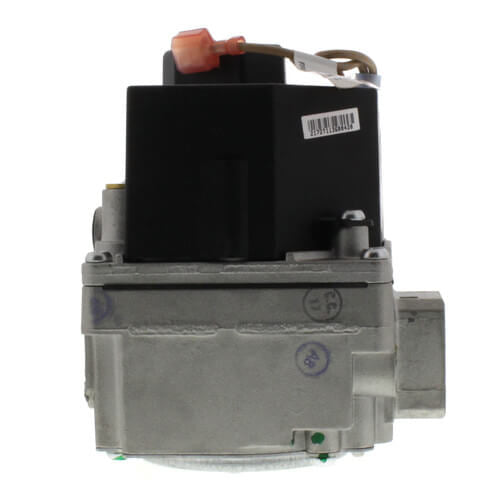

White Rodgers - 36H65-401 Electronic Ignition Gas Valve. Our highest capacity Series multi-function Combination Control covering a wide range of gas heating applications.
Features:
- Pilot port plugged for Hot Surface and Direct Spark Ignition systems, remove plug for Intermittent/Proven Pilot systems
- Slow open, two stage
- Electric on-off switch and convenient quick connect coil terminals
- Tamper resistant screws and controlled gasket compression to withstand high inlet pressures
- Mounting position upright, or 0° to 90°From upright in any direction
- CSA approved
Additional Information
Voltage24 Vac 50/60Hz
Pipe Size3/4 in. X 3/4 in.
Flow DirectionStraight Through
Regulator Adjustment Range4.0-9.5 Low, 8.0-12.0 High, LP Gas
Regulator Setting1.1 Low3.5 High
Opening Style2 - Stage Slow Opening
LP Conversion Kit IncludedYes
Side TapsNo
Inlet/Outlet Pressure TapYes/Yes
Standing Pilot with Line InterrupterNo
HSI/DSIYes
Intermittent/Proven PilotYes
Reducer BushingKitYes
