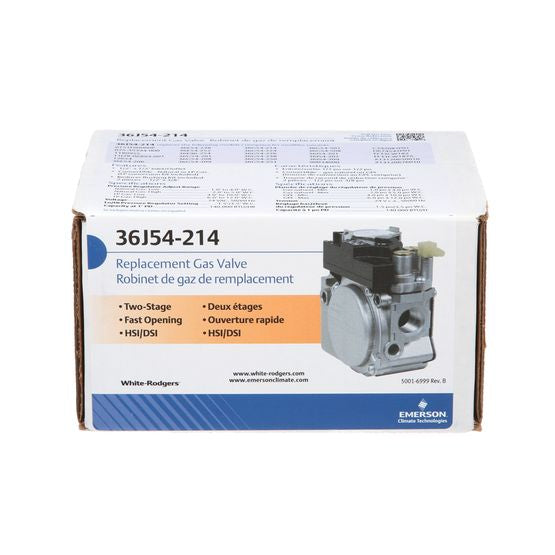

White Rodgers - 36J54-214 Electronic Ignition Gas Valve. The Versatile 36J Series Combination Gas Valve covers a wide range of applications. Designed for use with common ignition systems (HSI/DSI). 36J is our most compact footprint Combination Gas Valve.
Features:
- Designed for Hot Surface and Direct Spark Ignition systems and features a compact footprint and versatile range
- Fast open, two stage models.
- Electric on-off switch and convenient quick connect coil terminals and built-in pressure taps
- Tamper resistant screws and controlled gasket compression to withstand high inlet pressures
- Mounts in any position including upside down
- CSA approved
Additional Information
Voltage24 Vac 50/60Hz
Pipe Size1/2 in. X 1/2 in.
Flow DirectionStraight Through
Regulator Adjustment Range4.0-10.0 Low, 6.0-12.0 High, LP Gas
Regulator Setting1.5 Low3.5 High
Opening Style2 - Stage Fast Opening
LP Conversion Kit IncludedYes
Reducer Bushing KitYes
Side TapsNo
Inlet/Outlet Pressure TapYes/Yes
Standing Pilot with Line InterrupterNo
HSI/DSIYes
Intermittent/Proven PilotNo
AvailabilityIn stock
CategoryGas Valves
Country of originTW
Custom label 2in-stock
ManufacturerWhite Rodgers
Mpn36J54-214
SubcategoryFurnace Gas Valve
