White Rodgers

36J55-214, 36G-36J Series Gas Valves

36J55-214, 36G-36J Series Gas Valves

In Stock - 5 (Available by Tue, Dec 10 - Sat, Dec 14)

SKU SKU:kpi002-36J55-214

Regular price $130.58 USD
Regular price Sale price $130.58 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
availability: In stock
category: Gas Valves
country_of_origin: MX
custom_label_2: in-stock
manufacturer: White Rodgers
mpn: 36J55-214
subcategory: Furnace Gas Valve

Product Description

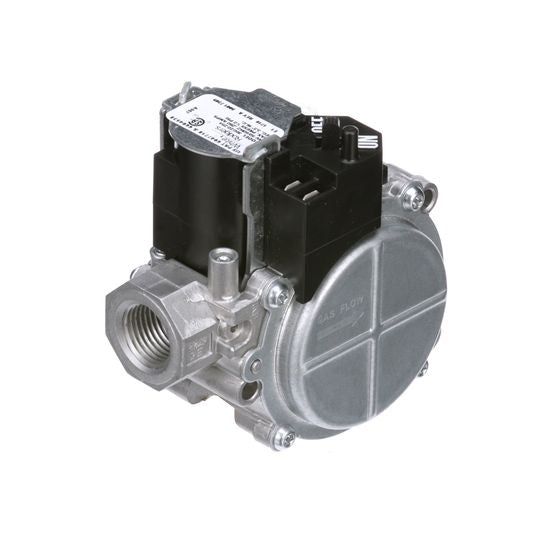

White Rodgers - 36J55-214 Electronic Ignition Gas Valve. The Versatile 36J Series Combination Gas Valve covers a wide range of applications. Designed for use with common ignition systems (HSI/DSI). 36J is our most compact footprint Combination Gas Valve.

Features:

  • Designed for Hot Surface and Direct Spark Ignition systems and features a compact footprint and versatile range
  • Slow open, two stage models.
  • Electric on-off switch and convenient quick connect coil terminals and built-in pressure taps
  • Tamper resistant screws and controlled gasket compression to withstand high inlet pressures
  • Mounts in any position including upside down
  • CSA approved

Additional Information

Voltage24 Vac 50/60Hz
Pipe Size1/2 in. X 1/2 in.
Flow DirectionStraight Through
Regulator Adjustment Range4.0-10.0 Low, 6.0-12.0 High, LP Gas
Regulator Setting1.5 Low3.5 High
Opening Style2 - Stage Slow Opening
LP Conversion Kit IncludedYes
Reducer Bushing KitYes
Side TapsNo
Inlet/Outlet Pressure TapYes/Yes
Standing Pilot with Line InterrupterNo
HSI/DSIYes
Intermittent/Proven PilotNo
