category:
Electric & Heating Controls
manufacturer:
White Rodgers
mpn:
50A55 843S1
subcategory:
Integrated Furnace Control
Product Description

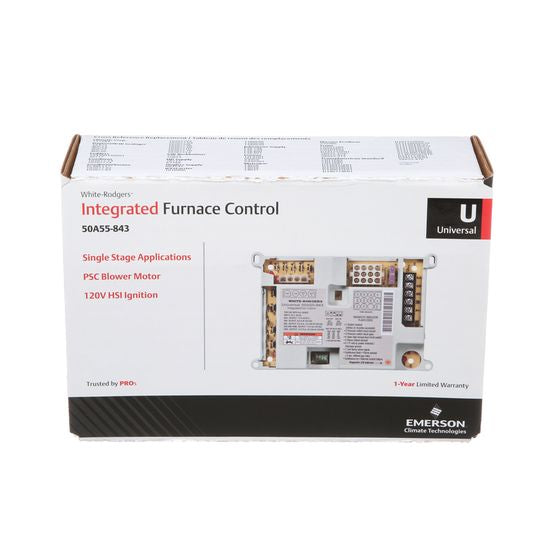

White Rodgers - 50A55 843S1 Replaces many White-Rodgers OEM models
Features:
- Reduces inventory by providing maximum control replacement coverage
- Diagnostic LED indicators streamline installation and system troubleshooting
- 120V air cleaner output and 120V humidifier output up to 1 Amp max
- Factory standard safety timings and adjustable fan delay options
- Replaceable automotive style fuse
- Additional jumpers to extend the length of the connections
Additional Information
Agency Approvalsc-CSA-us
Humidity Range5% to 93% relative humidity (non-condensing)
Operating Temperature Range-40° to 175°F (-40° to 79°C)
Low Voltage Circuit24 Vac, 50/60 Hz
Line Voltage Circuit120 Vac, 50/60HZ
Circulator Relay14.5 FLA - 25.0 LRA @ 120 Vac
