White Rodgers

50I56D-905, Intelligent Valve Retrofit Kit

50I56D-905, Intelligent Valve Retrofit Kit

In Stock - 2 (Available by Tue, Dec 10 - Sat, Dec 14)

SKU SKU:kpi002-50I56D-905

Regular price $243.25 USD
Regular price Sale price $243.25 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
availability: In stock
category: Kits And Accessories
custom_label_2: in-stock
manufacturer: White Rodgers
mpn: 50I56D-905
subcategory: Valve Retrofit Kit

Product Description

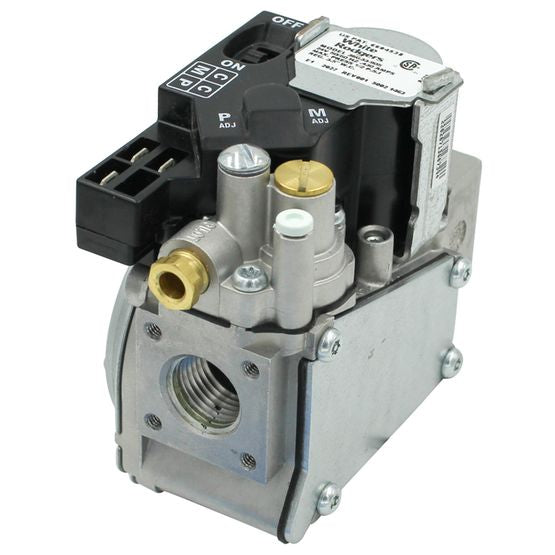

White Rodgers - 50I56D-905 Intelligent intermittent pilot HSI retrofit kit for ICP, Lennox single stage PSC furnaces. Upgrade systems with select SV9500, SV9501, SV9502 electronic intermittent pilot gas valves to standard gas valve with 120V HSI ignition. Complete kit includes new gas valve, control board, combination ignitor, flame sensor.

Features:

  • Cost competitive upgrade to modern technology for intelligent valve systems
  • Includes IP gas valve, 120V nitride ignitor and intermittent pilot single stage furnace control
  • Advanced diagnostics with standard furnace troubleshooting
  • Fault recall with pushbutton
  • Main board with full cover and fault code label
  • Selectable OEM blower delays dipswitch
  • Stock one kit instead of multiple parts

Additional Information

Humidity Range5% to 93% relative humidity (non-condensing)
Voltage (Low)25 Vac, 60 Hz
Voltage (Line)120 Vac, 60 Hz
Temperature Range Ambient Operating-40 degrees to 175 degrees F (-40 degrees to 79 degrees C)
