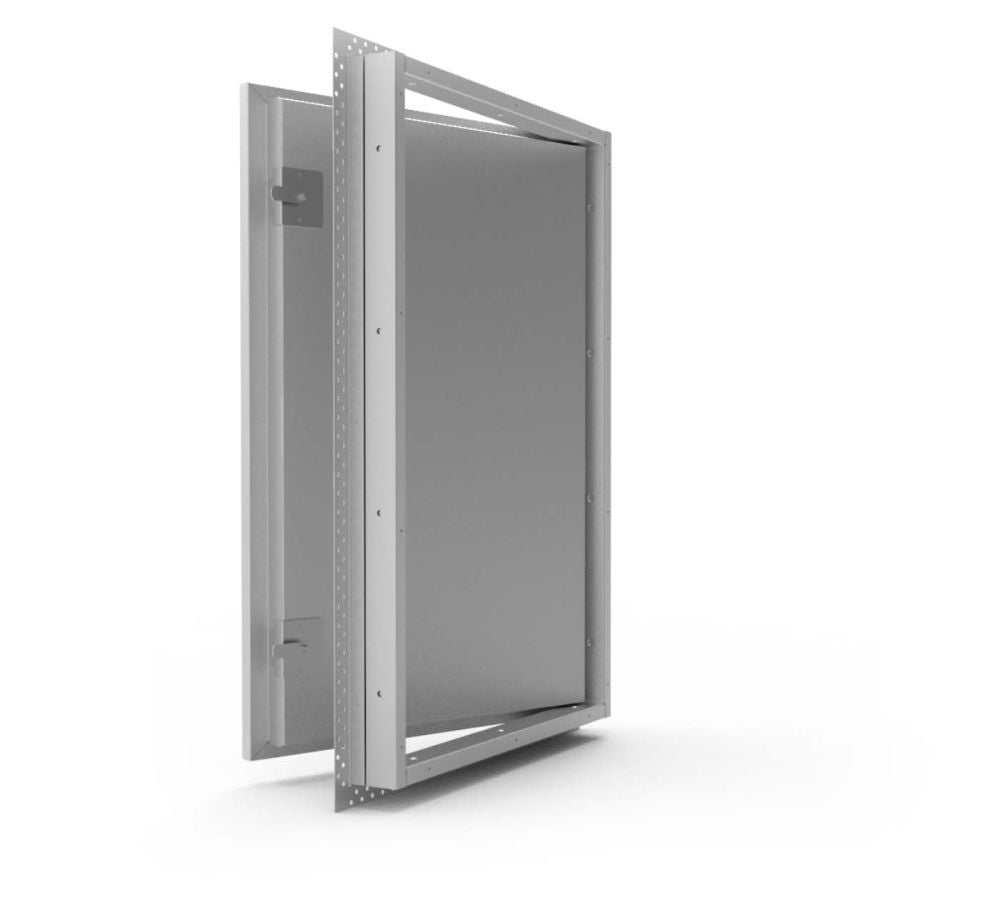

Acudor ACD-2064 24" x 36" Recessed Acoustical Access Door - For Drywall

Product Description

Acudor - ACD2436

Keep your building's indoor space quiet and peaceful by installing the 24 X 36 ACD-2064, a recessed, acoustical access door. You'll find its features very effective in specific spaces like conference rooms, recording studios, and offices, to name a few.

ACD-2064 Benefits:

• Provide ample noise reduction in specific building areas
• Maintain and achieve STC Rating and OITC Rating

You'll want the ACD-2064 to achieve the best soundproofing in different building areas. Manufacturers used an 18 gauge recessed design filled with 1½" thick acoustic mineral liner, 0.11" thick mineral-filled vinyl barrier, and fitted with 5/8" thick drywall finished face on the door.

Besides its soundproof door, the frame is an 18 gauge; press bent for strength and rigidity, drywall taping bead flange Insulated with a 1" thick acoustical mineral liner. This feature further increases soundproofing in areas where your contractors installed the access door.

You will also notice a 1/8" x ½" neoprene rubber gasket with an adhesive that protects systems and components on the other side of the door. Other features include a continuous exposed stainless steel piano hinge and a standard slotted screwdriver cam latch lock. You have other lock options, including a compression latch with a hex head, a hex with a security pin, a Square, Triangle, or a Torx head with a security pin.

Key Features for the ACD-2064:

• Tested and evaluated to ASTM: E90(09), ASTM: E413(16), ASTM: E1332(16), and certified to STC Rating 64 and OITC Rating 53
• Zinc-coated steel material to increase corrosion-resistance
• ?" thick drywall on the recessed door to achieve a seamless finish on its surroundings

Product Specifications:

• Material: 18 Gauge Satin Coat Steel

• Door: 18 Gauge recessed design filled with 1½” thick acoustic mineral liner, 0.11” thick mineral filled vinyl barrier and fitted with 5/8” thick drywall as finished face

• Frame: 18 Gauge, press bent for strength and rigidity, drywall taping bead flange Insulated with 1” thick acoustical mineral liner

• Gasket: 1/8” x ½” Neoprene Rubber with Adhesive

• Hinge: Continuous exposed stainless steel piano hinge

• Standard Lock: Slotted Screwdriver Cam Latch

• Optional Locks: Compression Latch with Hex Head, Hex with security pin, Square, Triangle, Torx head with security pin

• Acoustic Rating: This door has been tested and evaluated to ASTM: E90(09), ASTM: E413(16), ASTM: E1332(16) and certified to STC Rating 64 and OITC Rating 53.

• Finish: Satin Coat Steel
