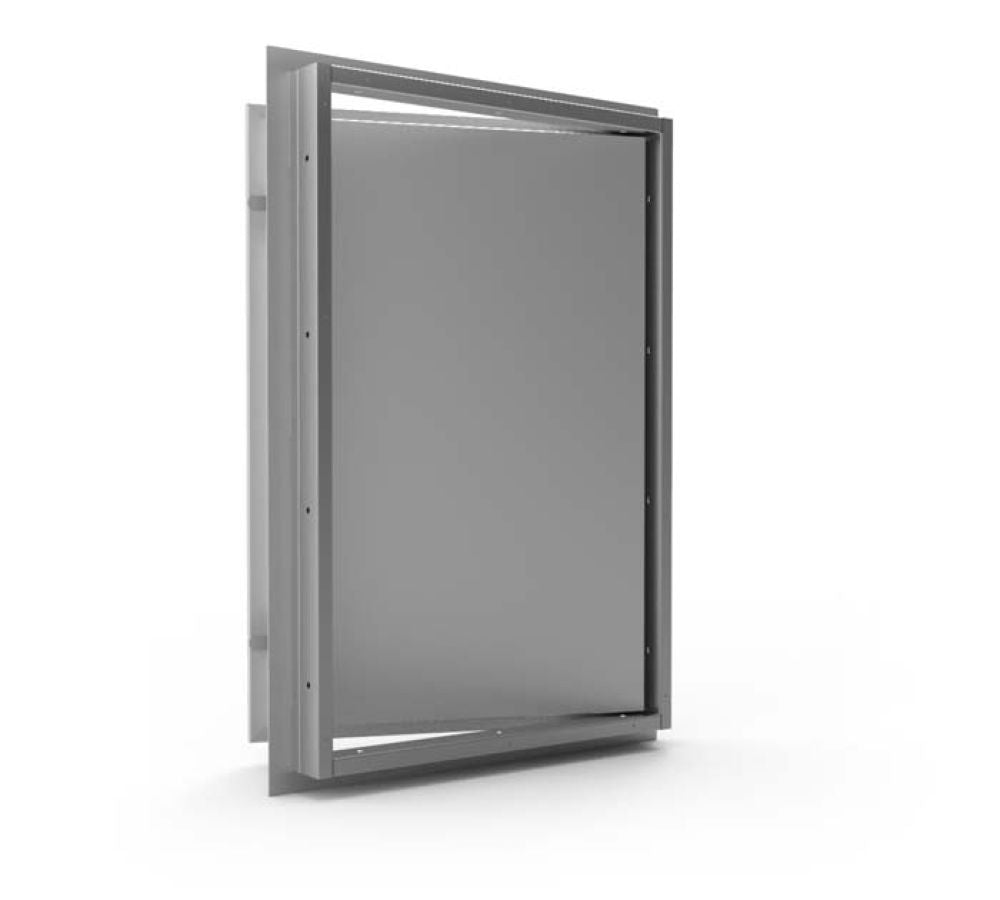

Acudor ACF-2064 18" x 18" Flush Acoustical Access Door - Prime Coated

Products Overview

Keep your building's indoor space quiet and peaceful by installing the 18" x 18" ACF-2064, a steel acoustical access door. You'll find its features very effective in specific spaces like conference rooms, recording studios, and offices, to name a few.

18" x 18" ACF-2064 Benefits:

• Provide ample noise reduction in specific building areas
• Maintain and achieve STC Rating and OITC Rating

You'll want the 18" x 18" ACF-2064 to achieve the best soundproofing in different building areas. Manufacturers use an 18 gauge, encapsulated design with a 2" thick acoustical mineral liner and an 0.11" thick mineral-filled vinyl barrier.

Besides its soundproof door, the frame is an 18 gauge, press bent for strength and rigidity, with 1" wide trim flanges and a 1" thick acoustical mineral liner. This feature further increases soundproofing in areas where your contractors installed the access door.

You will also notice a 1/8" x ½" neoprene rubber gasket with an adhesive that protects systems and components on the other side of the door. Other features include a continuous exposed stainless steel piano hinge and a standard slotted screwdriver cam latch lock. If you prefer another locking option, you can choose the Torx head with a security pin lock to enhance its security features.

Key Features of the 18" x 18" ACF-2064:

• Tested and evaluated to ASTM: E90(09), ASTM: E413(16), ASTM: E1332(16), and certified to STC Rating 64 and OITC Rating 54.
• Zinc-coated steel material to increase corrosion-resistance

Key Product Specifications:

• Material: 18 Gauge Satin Coat Steel
• Door: 18 Gauge, encapsulated design with 2" thick acoustical mineral liner and 0.11" thick mineral-filled vinyl barrier
• Frame: 18 Gauge, press bent for strength and rigidity, with 1" wide trim flanges and 1" thick acoustical mineral liner
• Gasket: 1/8" x ½" Neoprene Rubber with Adhesive.
• Hinge: Continuous exposed stainless steel piano hinge
• Standard Lock: Slotted Screwdriver Cam Latch
• Optional Lock: Torx head with security pin
• Finish: 5-stage iron phosphate preparation, prime coated with white baked-on enamel
