Product Description
Acudor - ACF2424

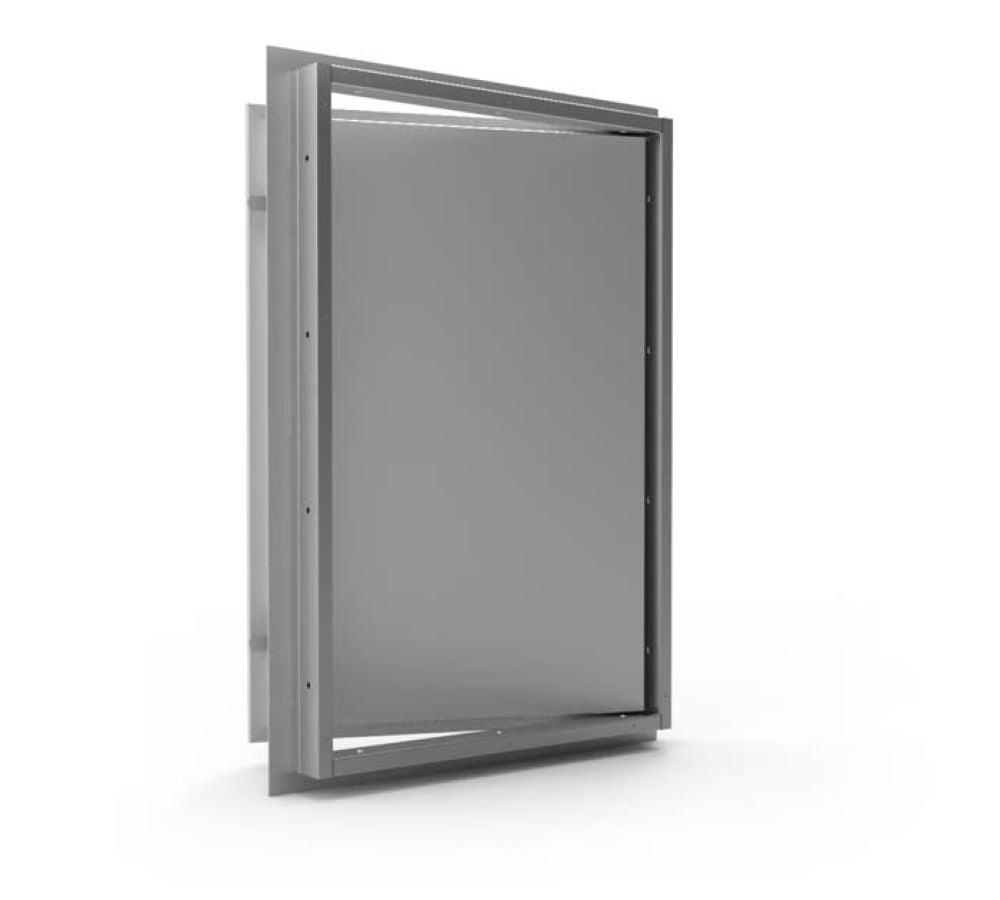

24" x 24" Steel Flush Acoustical Access Door - AcudorKeep your building's indoor space quiet and peaceful by installing the 24" x 24" ACF-2064, a steel acoustical access door. You'll find its features very effective in specific spaces like conference rooms, recording studios, and offices, to name a few.
24" x 24" ACF-2064 Benefits:
- Provide ample noise reduction in specific building areas
- Maintain and achieve STC Rating and OITC Rating
You'll want the 24" x 24" ACF-2064 to achieve the best soundproofing in different building areas. Manufacturers use an 18 gauge, encapsulated design with a 2" thick acoustical mineral liner and an 0.11" thick mineral-filled vinyl barrier.
Besides its soundproof door, the frame is an 18 gauge, press bent for strength and rigidity, with 1" wide trim flanges and a 1" thick acoustical mineral liner. This feature further increases soundproofing in areas where your contractors installed the access door.
You will also notice a 1/8" x ½" neoprene rubber gasket with an adhesive that protects systems and components on the other side of the door. Other features include a continuous exposed stainless steel piano hinge and a standard slotted screwdriver cam latch lock. If you prefer another locking option, you can choose the Torx head with a security pin lock to enhance its security features.
Key Features of the 24" x 24" ACF-2064:
- Tested and evaluated to ASTM: E90(09), ASTM: E413(16), ASTM: E1332(16), and certified to STC Rating 64 and OITC Rating 54.
- Zinc-coated steel material to increase corrosion-resistance
Key Product Specifications:
- Material: 18 Gauge Satin Coat Steel
- Door: 18 Gauge, encapsulated design with 2" thick acoustical mineral liner and 0.11" thick mineral-filled vinyl barrier
- Frame: 18 Gauge, press bent for strength and rigidity, with 1" wide trim flanges and 1" thick acoustical mineral liner
- Gasket: 1/8" x ½" Neoprene Rubber with Adhesive.
- Hinge: Continuous exposed stainless steel piano hinge
- Standard Lock: Slotted Screwdriver Cam Latch
- Optional Lock: Torx head with security pin
- Finish: 5-stage iron phosphate preparation, prime coated with white baked-on enamel
