Product details
category: Fire-Rated Access Door
door_size: 22 wide x 36 high
manufacturer: Acudor
mpn: Z62236SCPC
Products Overview

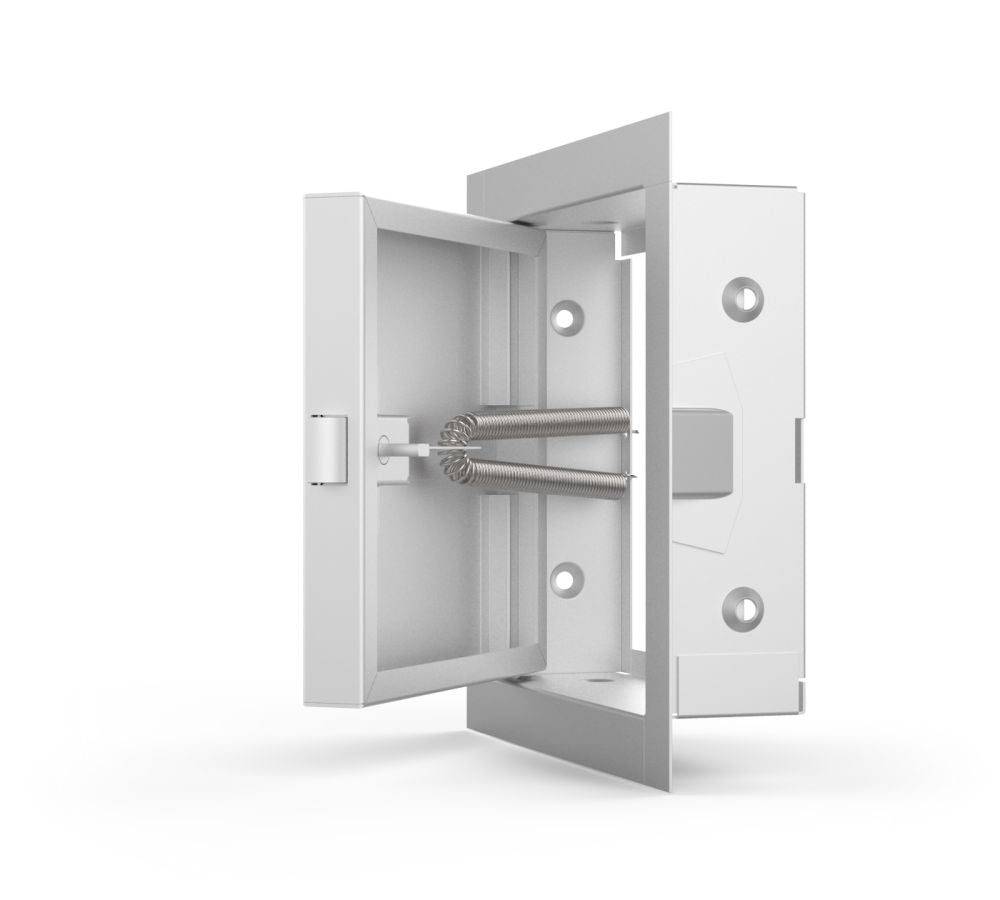

22" x 36" Fire Rated Un-Insulated Access Door with Flange - AcudorApproved by Underwriters Laboratories (UL) for 1 1/2 hours "B" label in walls and ULC for 2 hours "B" label in walls. Designed to maintain continuity in a 2-hour fire barrier wall, the FB-5060 should be used whenever it is necessary to provide access in fire rated walls, when temperature rise is not a factor.
Additional Information
Door Size: 22 wide x 36 high
Rough Opening Size: Nominal door size + 3/8" (9 mm)
Material: 16 gauge steel
360spin: FB-5060
Lock/Latch: 2 x Universal self-latching bolt, operated by either a knurled knob or flush key. When master keying is required, doors can be prepared for rim or mortise cylinder locks
Flange: 1 flange
Hinge: Concealed
Finish: 5 stage iron phosphate preparation with prime coat of White alkyd baked-on enamel
Fire Rating: 2 hour
