Acudor

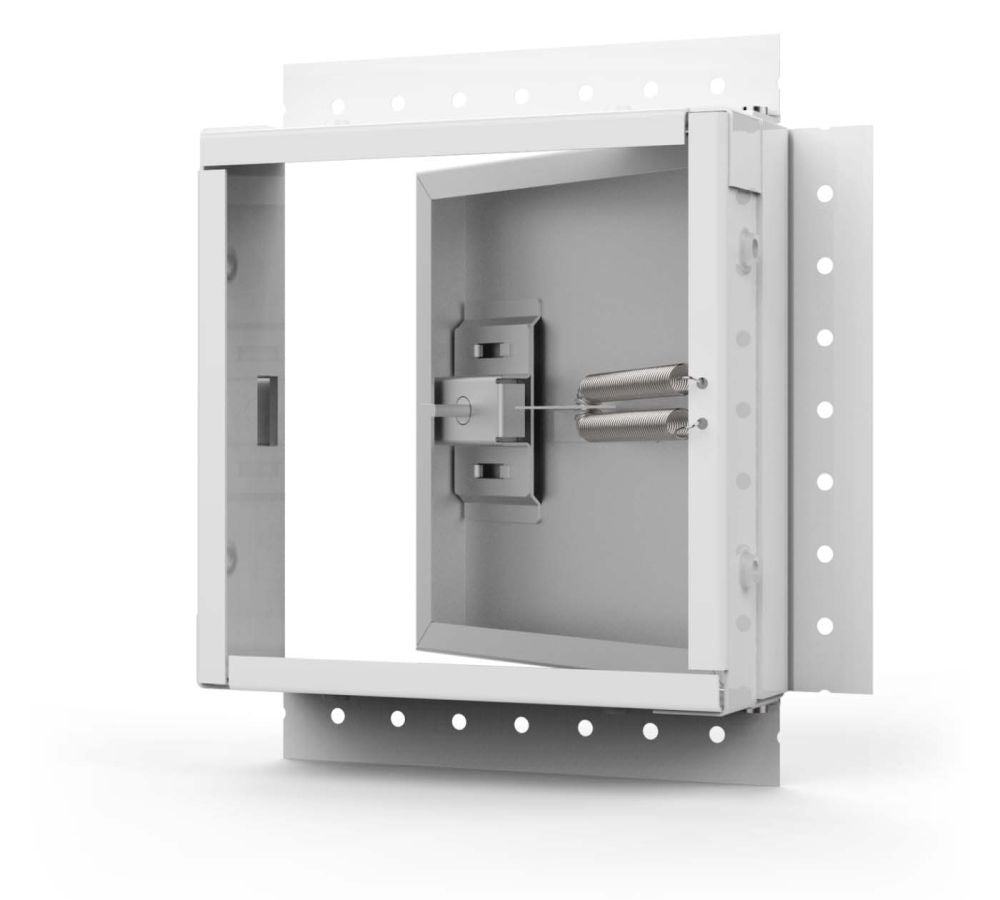

Acudor FB-5060-DW 36" x 36" Fire-Rated Access Door

Acudor FB-5060-DW 36" x 36" Fire-Rated Access Door

Dropship

SKU SKU:kpi083-Z63636SCDW

Regular price $497.65 USD
Regular price Sale price $497.65 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Fire-Rated Access Door
door_size: 36 wide x 36 high
manufacturer: Acudor
mpn: Z63636SCDW

Products Overview

36" x 36" Fire Rated Un-Insulated Access Door with Flange for Drywall - Acudor

The FB-5060-DW drywall, fire rated access door is an enhanced FB-5060 that includes a galvanized steel drywall taping bead flange to facilitate installation in drywall. The Acudor FB-5060 is approved by Underwriters Laboratories (UL) for 1 1/2 hours "B" label in walls and ULC for 2 hours "B" label in walls. Designed to maintain continuity in a 2-hour fire barrier wall, the FB-5060 should be used whenever it is necessary to provide access in fire rated walls, when temperature rise is not a factor.

Additional Information

Door Size: 36 wide x 36 high
Rough Opening Size: 36 x 38
Material: 16 gauge steel
Lock/Latch: 1 x Universal self-latching bolt, operated by either a knurled knob or flush key. When master keying is required, doors can be prepared for rim or mortise cylinder locks
Flange: Drywall taping bead flange
Hinge: Concealed pin hinge
Finish: 5 stage iron phosphate preparation with prime coat of White alkyd baked-on enamel
