category:
Fire-Rated Access Door
door_size:
12 wide x 12 high
manufacturer:
Acudor
mpn:
Z61212SCPCR
Product Description

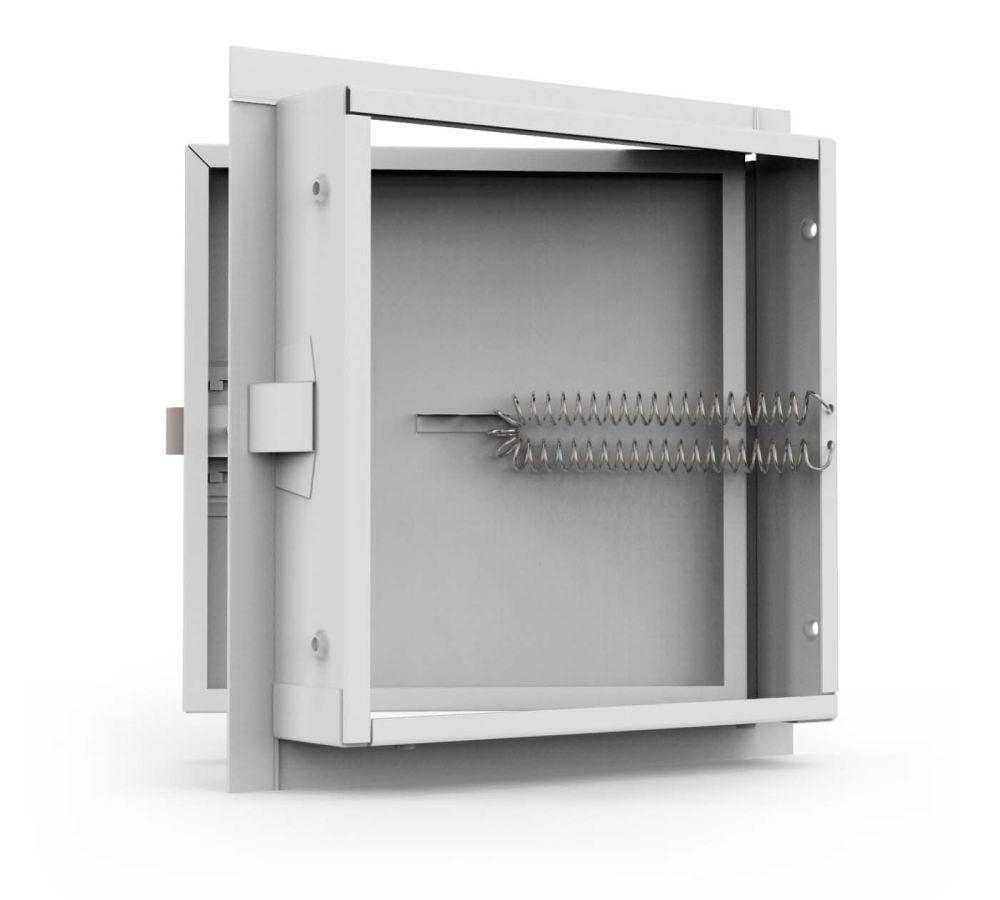

Acudor - Z61212SCPCR 12" x 12" Fire Rated Un-Insulated Recessed Door for Tile Walls - AcudorThe FB-5060-TD recessed for tile, fire rated access door is an enhanced FB-5060 designed for use in tiled walls. The door is recessed 1/2" and is lined with self-furring lath. The Acudor FB-5060 is approved by Underwriters Laboratories (UL) for 1 1/2 hours "B" label in walls and ULC for 2 hours "B" label in walls. Designed to maintain continuity in a 2-hour fire barrier wall, the FB-5060 should be used whenever it is necessary to provide access in fire rated walls, when temperature rise is not a factor.
Additional Information
Door Size: 12 wide x 12 high
Rough Opening Size: 12 x 38
Material: 16 gauge steel door and frame with reinforced edges, door panel recessed 1/2 and lined with self-furring lath."
Lock/Latch: 1 x Universal self-latching bolt, operated by either a knurled knob or flush key. When master keying is required, doors can be prepared for rim or mortise cylinder locks
Hinge: Continuous, exposed piano hinge
Finish: 5 stage iron phosphate preparation with prime coat of White alkyd baked-on enamel
Fire Rating: UL 1-1/2 hour B label. ULC " 2 hour B label"
