category:
Fire-Rated Access Door
door_size:
24 wide x 24 high
manufacturer:
Acudor
mpn:
Z52424SCDWR
Product Description

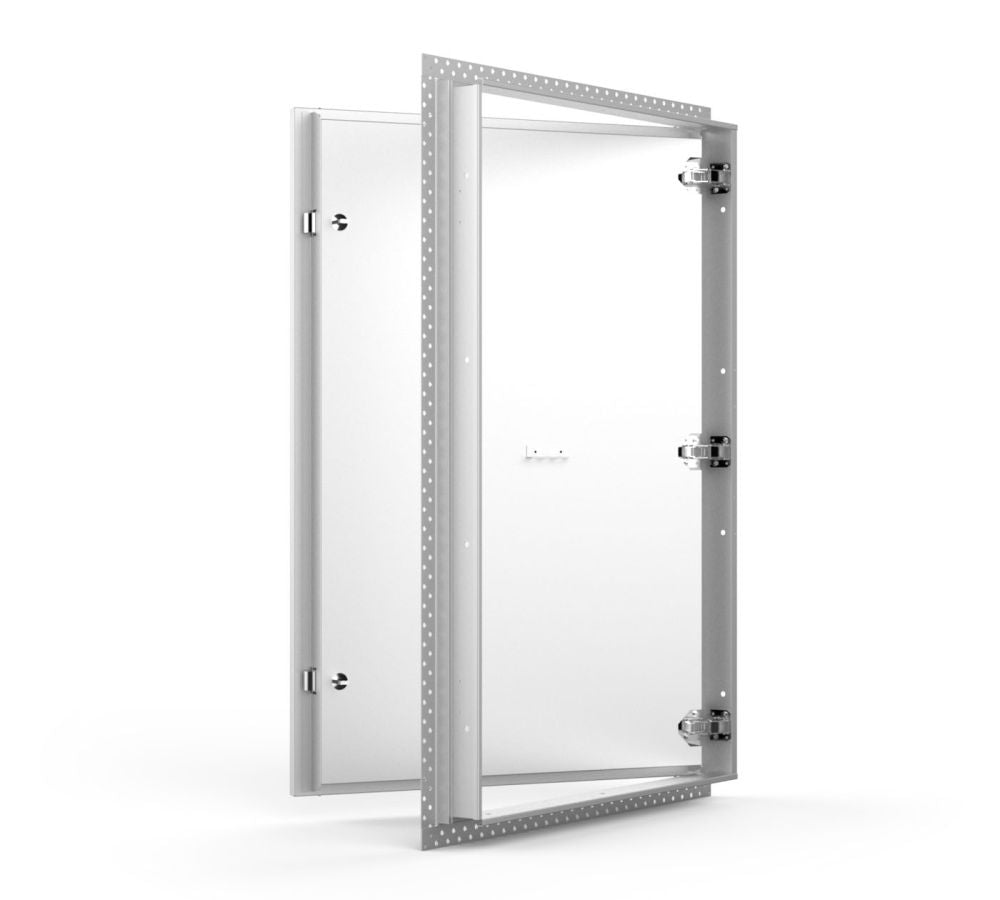

Acudor - Z52424SCDWR 24" x 24" Fire Rated Un-Insulated Recessed Door for Drywall Walls - AcudorThe FW-5015 recessed for drywall, fire rated access door is designed for installation in drywall walls requiring concealing of the door panel consistent to the surrounding walls. The door panel is supplied with 5/8" drywall. The Acudor FW-5015 is approved by Underwriter's Laboratories (UL) for 1-1/2 hours "B" label in walls. Designed to maintain continuity in a 2 hour fire barrier wall, the FW-5015 should be used whenever it is necessary to provide access in fire rated drywall walls, where it is required to conceal the door panel.
Additional Information
Door Size: 24 wide x 24 high
Rough Opening Size: 24 x 38
Material: 22 gauge steel, recessed door fitted with 5/8 thick drywall suitable to accept skim coat finish on site"
Lock/Latch: 1 x Self Latching Bolt, operated by flush key
Flange: Frame flange with pre-punched holes and textured for convenient mounting and accepting skim coat finish
Hinge: Concealed
Finish: Satin Coat Steel
Fire Rating: Approved by Underwriter's Laboratories (UL) for 1-1/2 hours B label in walls. Designed to maintain continuity in a 2 hour fire barrier wall.
