Product details
category: Fire-Rated Access Door
door_size: 22 wide x 30 high
manufacturer: Acudor
mpn: Z52230UPPC
Products Overview

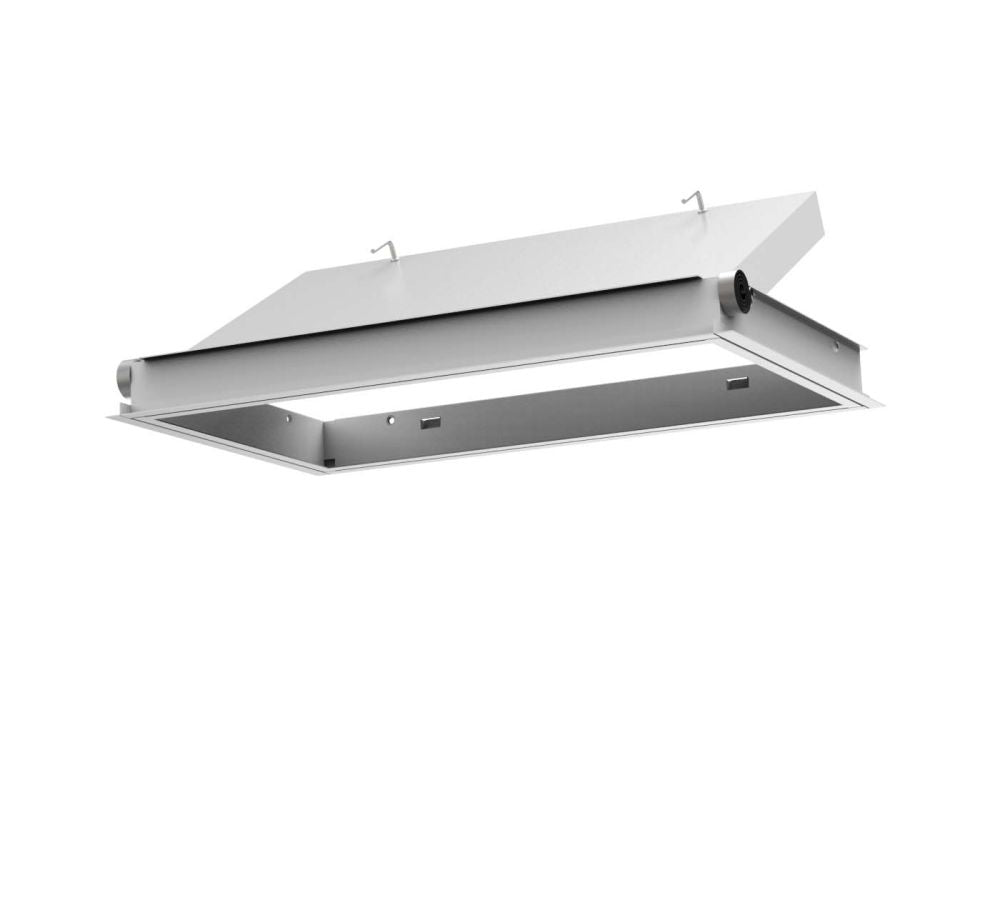

22" x 30" Fire Rated Insulated Access Door - Upward Opening - AcudorThe FW-5050-UP is an upswing fire rated access door approved for installation in ceilings. This door has been approved by Warnock Hersey International for three hours, with a maximum size of 24" x 36".The door panel is insulated and has a coil spring for dampening when closing.
Additional Information
Door Size: 22 wide x 30 high
Rough Opening Size: 22 x 12
Material: 16 gauge steel
Lock/Latch: L Handle - operable from both sides
Flange: Reinforced edges filled with 2 thick fire insulation"
Hinge: Concealed with coil spring for dampening
Finish: 5 stage iron phosphate preparation with prime coat of White alkyd baked-on enamel
Fire Rating: UL 1-1/2 hour B label. ULC " 2 hour B label"
