capacity:
5000lb / 3000kg
data_sheet:
https://adamequipment.com/media/docs/data_sheets/PT-DS-A4-EN.pdf
manual:
https://adamequipment.com/media/docs/manuals/PT_UM_EN.pdf
manufacturer:
Adam Equipment
mpn:
PT 312-5M
pan_size:
47.2” x47.2” / 1200x1200mm
Data Sheet Product Description

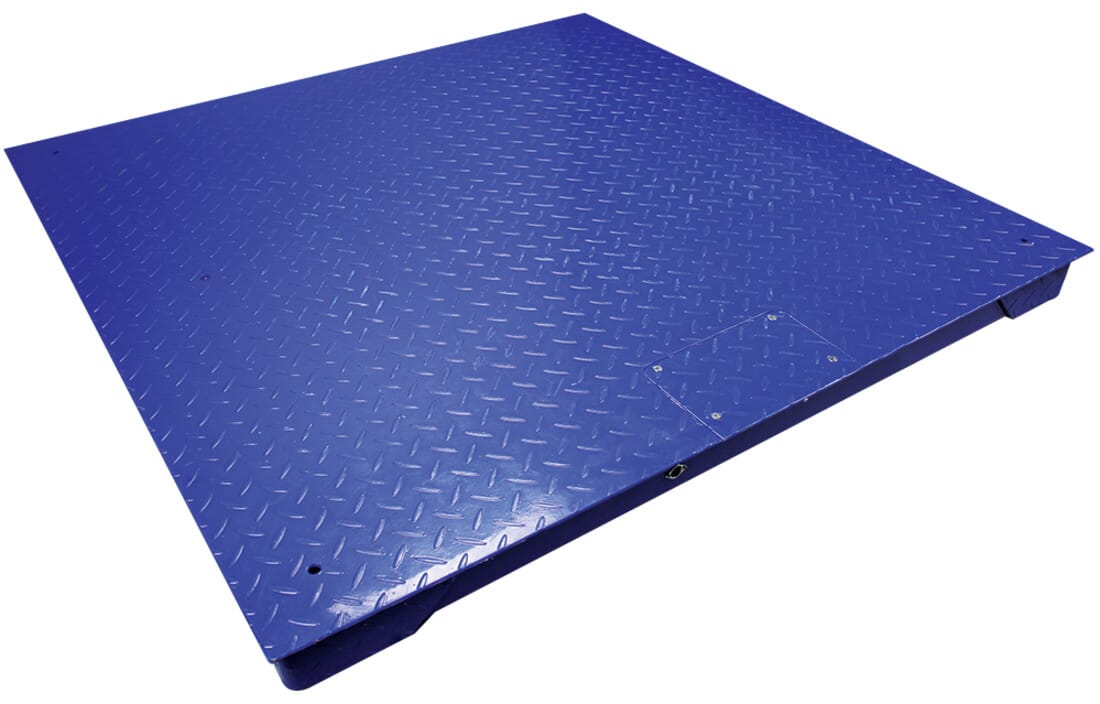

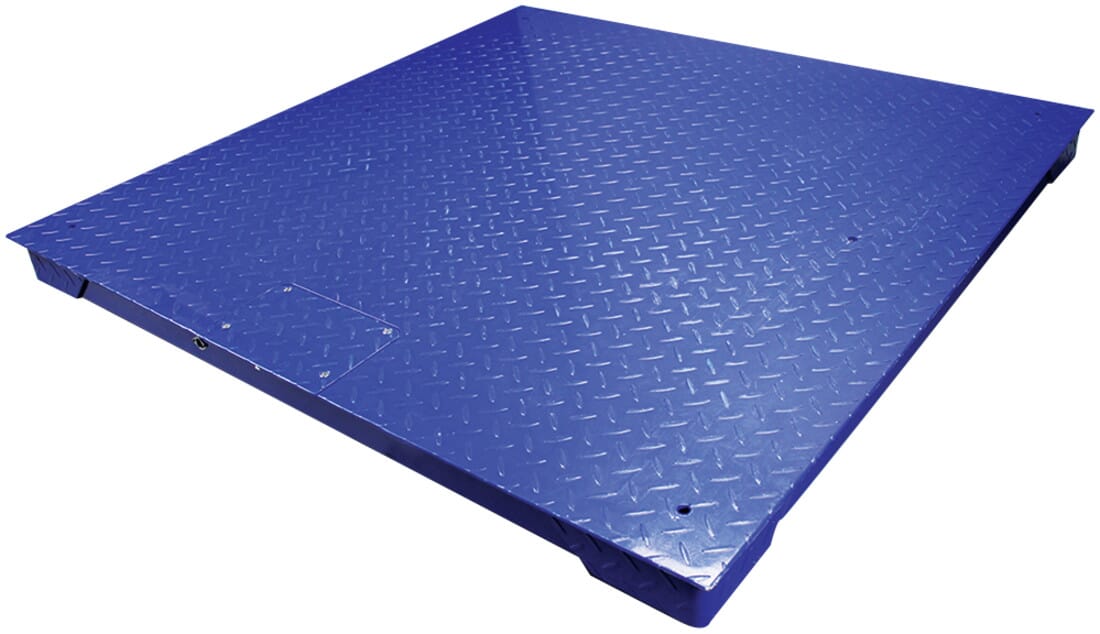

Adam Equipment - PT 312-5M PTaM trade approved industrial platform scales offer durability, quality construction and ease of use for weighing oversized or heavy objects on warehouse floors.
The PTaM features a large, steel base with a diamond plate surface, adjustable levelling feet and cable. Optional ramps facilitate loading and unloading heavy objects.
Adam offers a range of weight and counting indicators that can be combined with PTaM platforms, including the GK, GC and AE402 for expanded weighing applications that include checkweighing, parts counting and dynamic animal weighing.
Additional Information
Capacity5000lb / 3000kg
Readability1lb / 0.5kg
Repeatability2lb / 1000g
Linearity2lb / 1000g
Pan size47.2" x47.2" / 1200x1200mm
Stabilisation Time2
Operating Temperature-10° to 40°C / 14° to 104°F
ConstructionMild steel base
Net Weight100kg
Overall dims47.2"x47.2"x4.3" / 1200x1200x110mm
ApprovalsNTEP
