capacity:
5000lb / 3000kg
data_sheet:
https://adamequipment.com/media/docs/data_sheets/PT-DS-A4-EN.pdf
manual:
https://adamequipment.com/media/docs/manuals/GK_GK_M_UM_EN.pdf
manufacturer:
Adam Equipment
mpn:
PT 315-5 [GK]
pan_size:
59.1” x59.1” / 1500x1500mm
Data Sheet Product Description

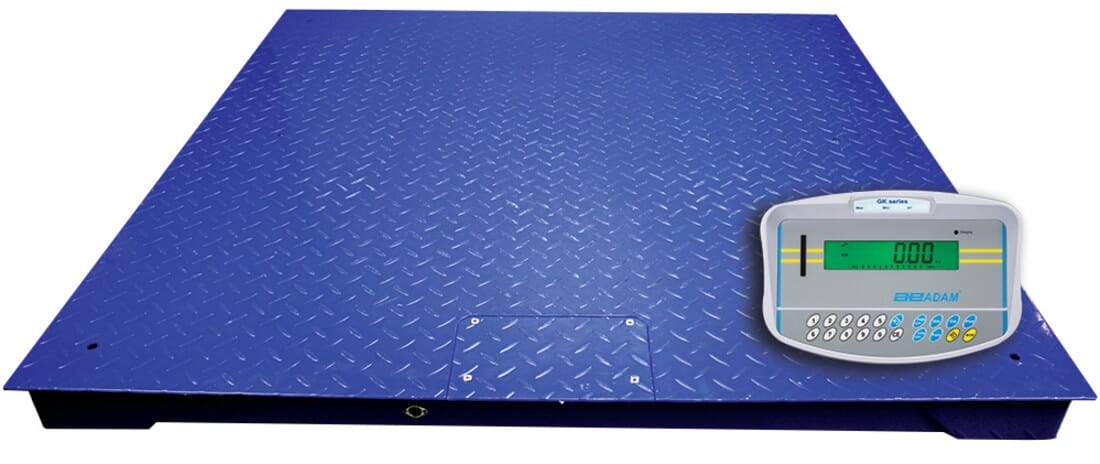

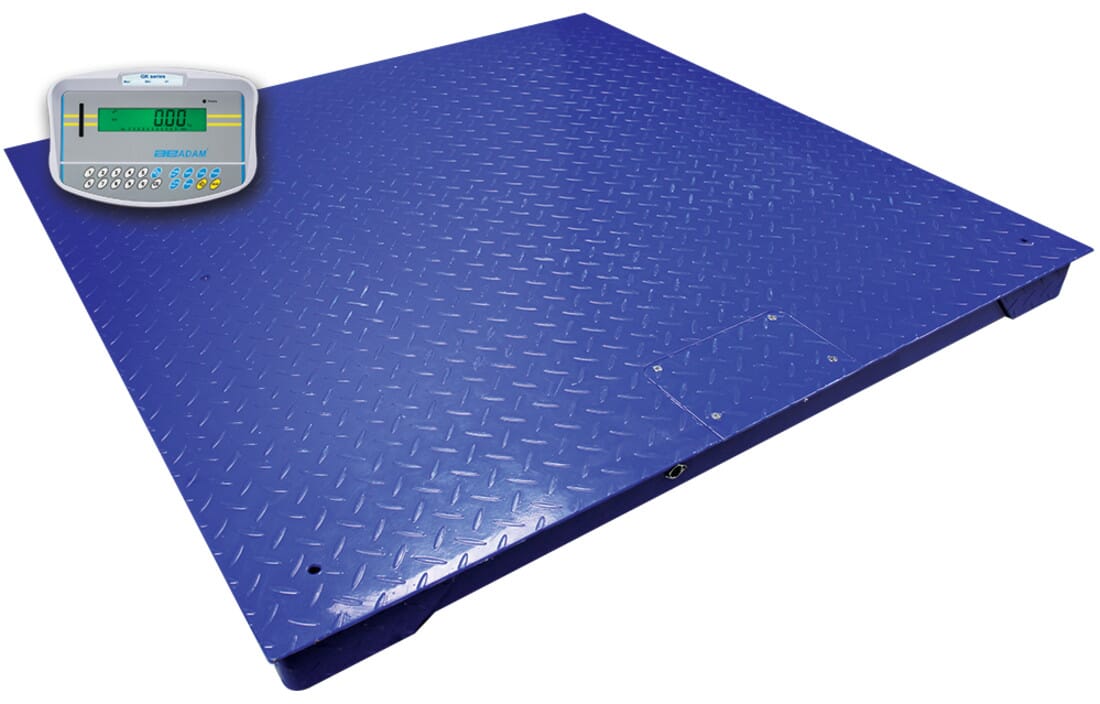

Adam Equipment - PT 315-5 [GK] PT industrial platform scales offer durability, quality construction and ease of use for weighing oversized or heavy objects on warehouse floors.
The PT features a large, steel base with a diamond plate surface, adjustable levelling feet and cable. Optional ramps facilitate loading and unloading heavy objects.
Adam offers a range of weight and counting indicators that can be combined with PT platforms, including the GK, GC and AE402 for expanded weighing applications that include checkweighing, parts counting and dynamic animal weighing.
Additional Information
Capacity5000lb / 3000kg
Readability1lb / 0.5kg
Repeatability2lb / 1000g
Linearity2lb / 1000g
Pan size59.1" x59.1" / 1500x1500mm
Weighing Unitsg, kg
Stabilisation Time2
InterfaceRS-232
CalibrationExternal calibration
DisplayBacklit LCD with 0.8" / 20mm high digits
Power Supply12VDC 800mA adapter / Internal rechargeable battery
Maximum Battery Life (in hours)70
Operating Temperature-10° to 40°C / 14° to 104°F
ConstructionMild steel base
Net Weight167kg
Overall dims59.1"x59.1"x4.3" / 1500x1500x110mm
