Product Description

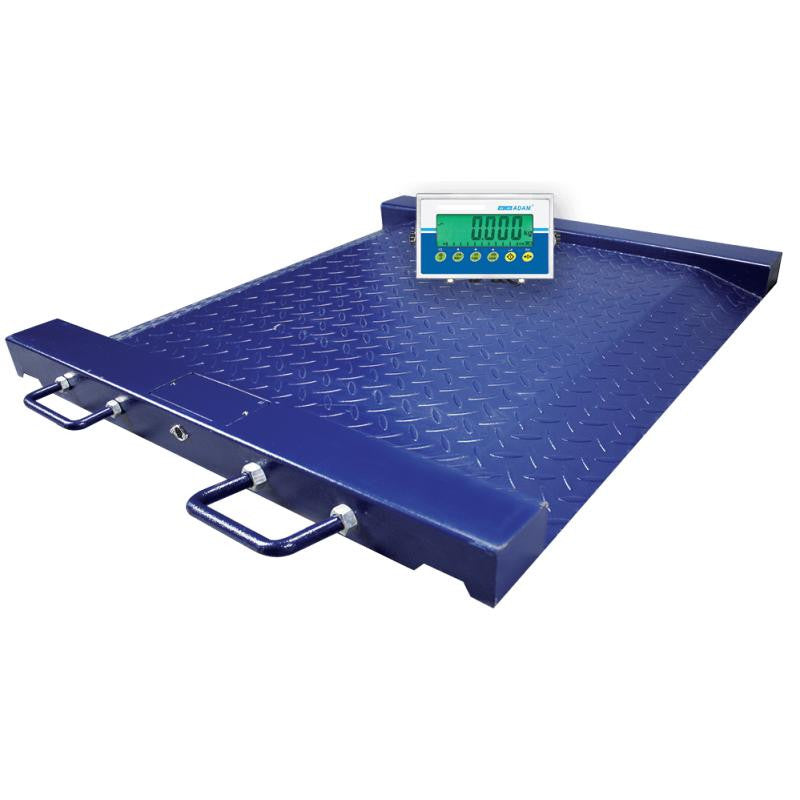

Adam Equipment - PTM 500 [AE403a] The PTM wheelchair scale features a low-profile base and easy-access ramps on both sides, offering smooth transitions from the floor to the platform and is suitable for use in warehouses or medical facilities.
PTM drum and wheelchair scales are ideal for checking the weight of wheelchair occupants, barrels and drums, or loaded dollies. Its diamond plate surface provides good grip and a solid, steady weighing area. Handles and wheels enable easy accessibility in a wide range of environments from doctors surgeries, health centres and elderly care homes to warehouse and factory floors.
The PTM is available with the GK indicator or AE 403 indicator, offering a range of features and functions. The GK indicator allows a numeric tare value to be entered, while the AE 403 is IP68 rated for dusty and wet environments.
Features
- Adjustable leveling feet help optimize setup
- Built-in ramps on each side enable easy access
- Diamond-plate surface for added grip
- Heavy-duty rubber feet ensure stability of unit
- Integrated wheels permit easy movement
- Approximately three-meter/10-foot load cell cable
- Rugged construction stands up to industrial use
- Ramps allow easy access for wheelchair use
- A 3-year warranty means quality assured for years of use.
Additional Information
Capacity1100lb / 500kg
Readability0.2lb / 0.1kg
Repeatability0.4lb / 100g
Linearity0.4lb / 200g
Pan size22.8" x29.9" / 580x760mm
Weighing Unitscustom unit, g, kg, lb, lb:oz, N, oz
Stabilisation Time2
InterfaceRS-232
CalibrationExternal calibration
DisplayBacklit LCD with 1.6" / 40mm high digits
Power Supply12VDC 800mA adapter / Internal rechargeable battery
Maximum Battery Life (in hours)90
Operating Temperature-10° to 40°C / 14° to 104°F
ConstructionMild steel base
Net Weight44kg
Overall dims40.2"x31.6"x3.0" / 1020x803x75mm
