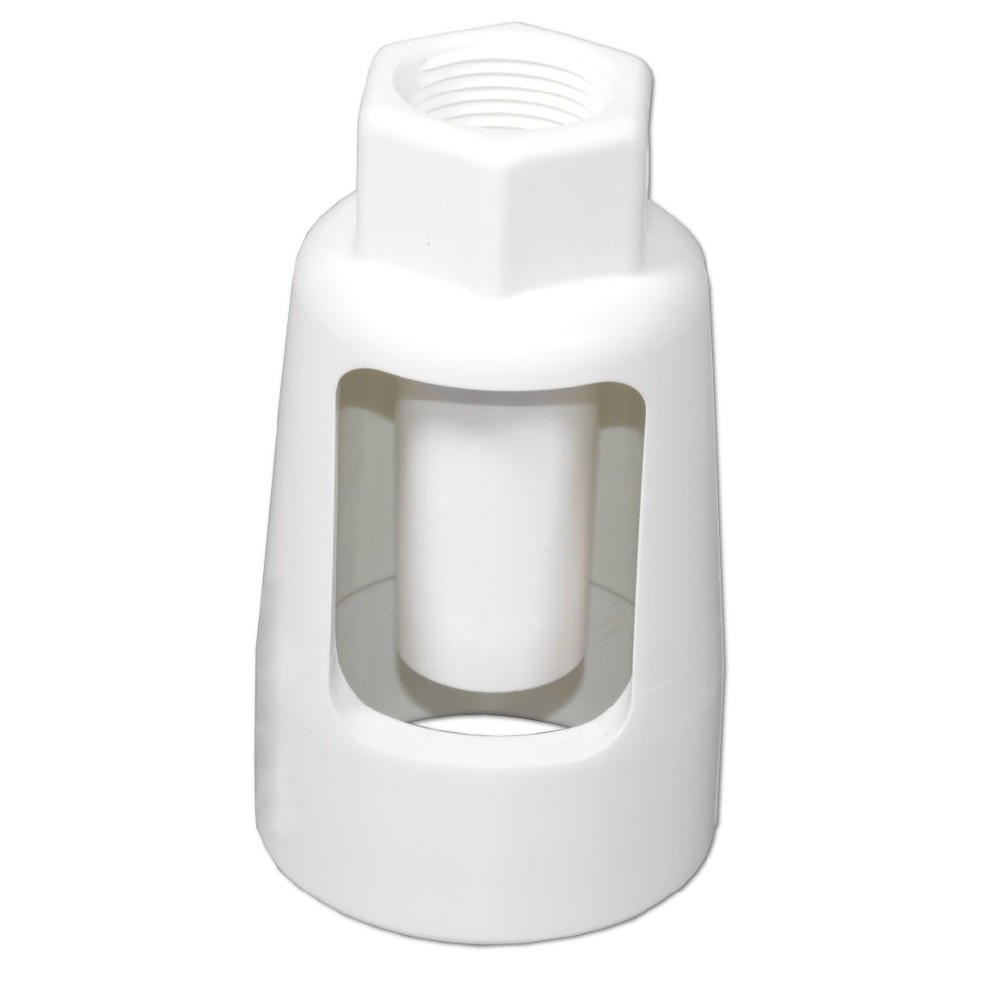

Airgap ET115-002 Water Filter/Softener Air Gap With 3/4-inch Female Threaded Inlet for Use With 1-1/2-inch or 2 inches (with coupler) Standpipe

Product Description

Airgap - ET115-002 The ET115-002 universal water softener or water filter air gap is designed to provide a convenient way to install an air gap into 1-1/2-inch standpipe drain. This air gap can be connected using a rigid PVC pipes or flex tubing with adapters. The unique design provides a completely protected air gap without any possibility of water splashing out. The inlet accommodates 3/4-inch threaded PVC pipes or adapters.

The ET115-002™s minimum flow rate is 0.5 gallons per minute (GPM) and the maximum flow rate is 9 gallons per minute (GPM). The minimum and maximum flow rates through an air gap are the lowest and highest flow rates at which water does not splash outside of an air gap. At minimum or maximum flow rate, the air gap is dry on the outside.

It is easy to use, easy to install, and easy to maintain. The ET115-002 air gap is listed by UPC and tested for compliance with IPC and NSF standards.

Optional accessories are available for the ET115-002:

Features

• FLOW RATE: The ET115-002™s minimum flow rate is 0.5 gallons per minute (GPM) and the maximum flow rate is 9 gallons per minute (GPM). The minimum and maximum flow rates through an air gap are the lowest and highest flow rates at which water does not splash outside of an air gap. At minimum or maximum flow rate, the air gap is dry on the outside.
• SIMPLE INSTALLATION: The ET115-002 is designed for connecting discharge water tubing from a water softener system to a drain line. Its 3/4-inch MIPT threaded inlet accepts a 3/4-inch threaded PVC pipe or the 3/4-inch threaded ET170-XXX series air gap adapters (models -009 to -014). The ET115-002 installs to a 1-1/2 inches OD standpipe or 2 inches OD standpipe with 2-inch couplers. The ET115-002 can be pressure fit or glued to a plastic standpipe.
• STANDPIPE CONNECTION: The ET115-002 connects to a 1-1/2 inches OD standpipe or 2 inches OD standpipe with couplers. The air gap™s flow capacity is 15 gallons/minute.
• DRY OPERATION: The ET115-002 is designed with a splash guard to assure a dry operation. It is also recommended to install the ET115-002 at least 18 inches above the P-Trap to avoid water splashing back from the air gap.
• CERTIFICATION: The ET115-002 is UPC; (Uniform Plumbing Code) Listed, IPC; (International Plumbing Code), and NSF; (National Sanitation Foundation) tested. The testing is conducted for every manufactured lot to ensure consistent performance.
• Slight color variation of plastic material is normal for this product. Color can vary from white to light beige.
