category:
Scanners
height:
28.5 cm
length:
48.5 cm
mpn:
HD3200
subcategory:
OBD2 Diagnostic Scanner
weight:
17.38 kg
width:
38.5 cm
Product Description

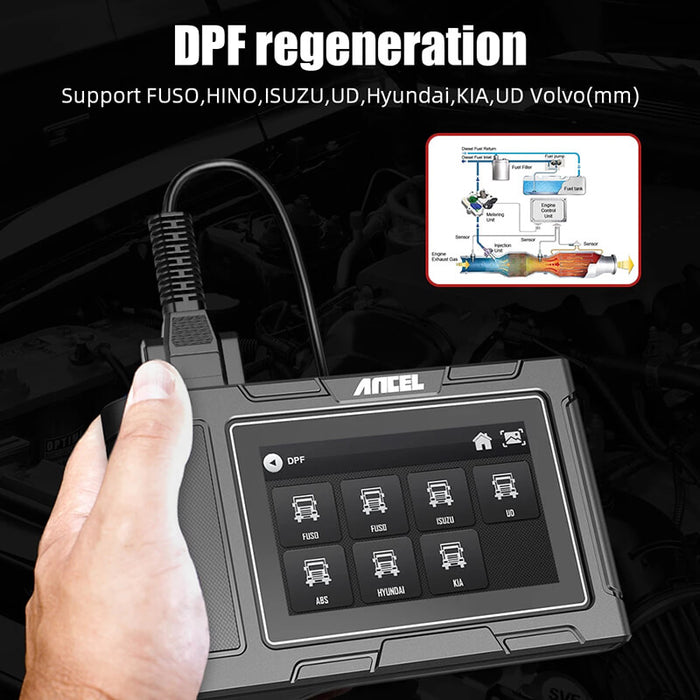

The ANCEL HD3200 is a professional heavy-duty truck diagnostic scanner that also doubles as a 12 V OBD2 scanner for cars and light trucks. It provides comprehensive system diagnostics for commercial diesel vehicles (12 V/24 V) including engine, transmission, ABS and more, as well as advanced maintenance functions like DPF regeneration and oil service reset — making it suitable for fleet managers, mechanics and serious DIY users.
Key Features
- Full system diagnostics for heavy duty trucks — reads and clears fault codes from all ECUs.
- Works as a 2-in-1 tool: supports heavy duty truck protocols and standard OBD2 diagnostics for cars.
- Pin detect function to check diagnostic port pin voltage and status for reliable connections.

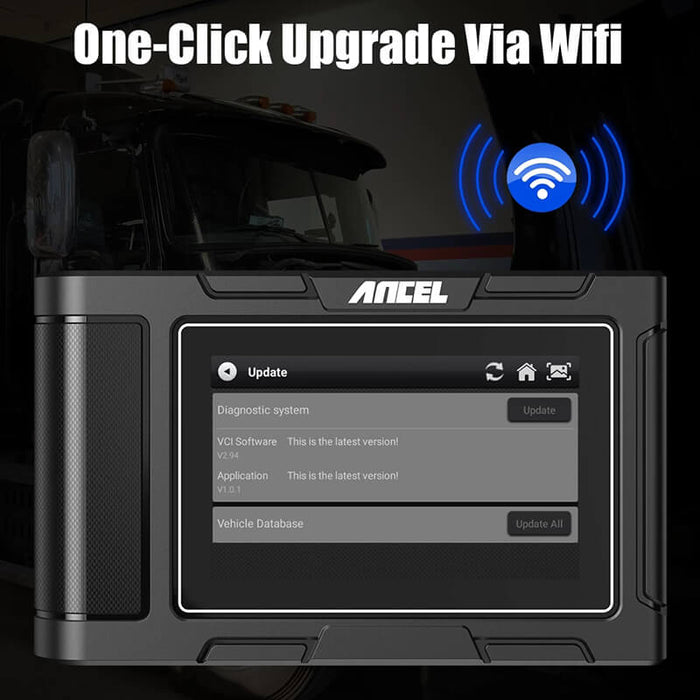

- Lifetime free software updates via Wi-Fi keep the unit current with new vehicles.
Specifications
| Model | HD3200 All-System Heavy Duty Truck Scanner |
|---|---|
| Display | 5″ HD touchscreen (approx. 800×480) |
| Memory | 1 GB RAM / 8 GB flash storage |
| Power Supply | DC 10 V–36 V (via vehicle diagnostic port) |
| Supported Protocols | J1587, J1708, J1939, ISO 27145-4, OBDII & others |
| Software Updates | Lifetime free updates via Wi-Fi. :contentReference[ |

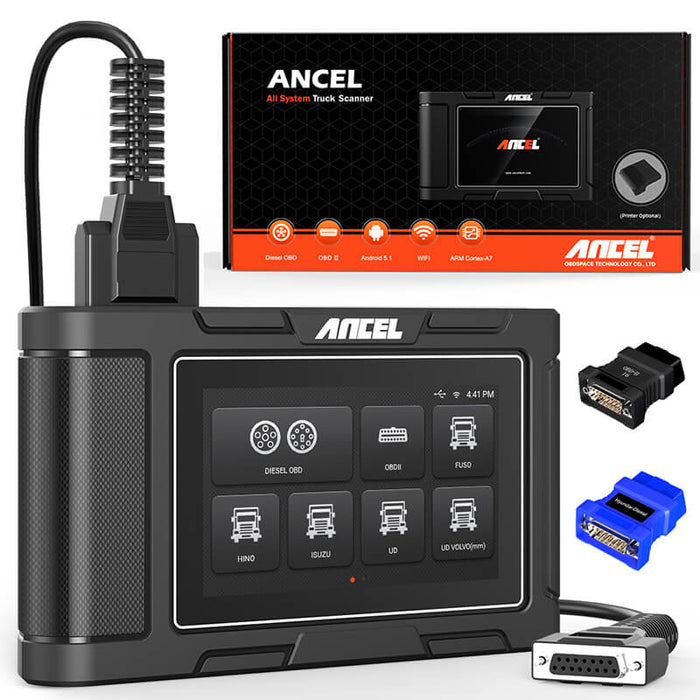

Package Includes
- HD3200 Diagnostic Scanner Unit
- DB15 Heavy Duty Truck Cable
- DB15-to-16-pin OBD2 Adapter (x2)
- 6-pin J1708 + 9-pin J1939 to 16-pin OBD2 Cable
- User Manual
