category:
Bath & Kitchen Products
diameter:
3
height:
5.04 "
length:
4.37 "
manufacturer:
B&K Products
mpn:
520-310
subcategory:
Elbow
upc:
032888360150
weight:
5.3572 lbs
width:
7.05 "
Product Description

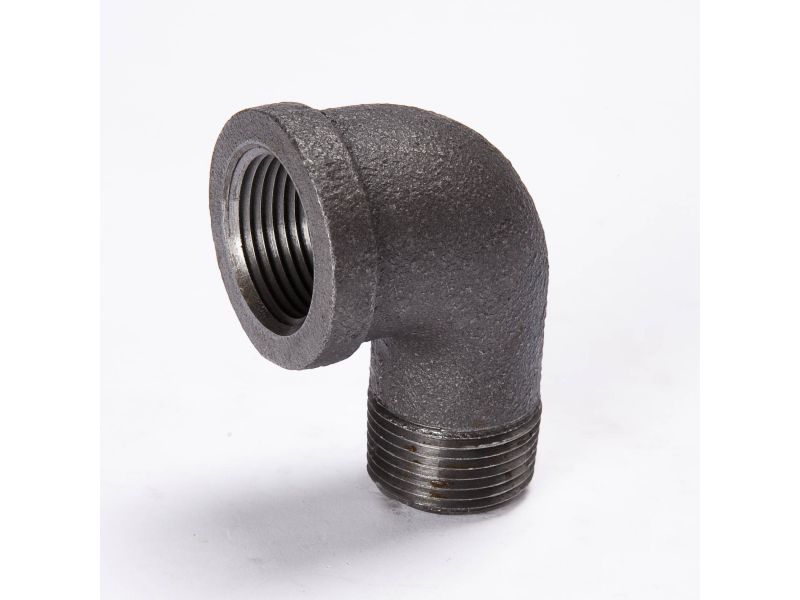

B&K Products - 520-310 Street Elbows are used around existing piping mounted on flat surfaces such as a wall or ceiling. General uses for this product are for transporting lubricant, oil, grease, LP gases fuel or to create your own DIY projects. This fitting is not designed for potable water applications.
Features- Generally used for lubricant, oil, grease, liquefied petroleum (LP) gas, natural gases (nitrogen, oxygen, etc.), steam and diesel
- 150-lb class malleable fittings
- Relative softness of metal helps provide a sure seal
- This fitting works up to 500 PSI at 150°F
- Threaded ends comply with ANSI/ASME B1.20.1 standards
- Meet ASTM and ASME standards
Additional Information
Inlet Diameter (in) 3
Inlet Connection FIP
Outlet Diameter (in) 3
Outlet Connection MIP
Product Length (in) 4.37
Product Height (in) 5.04
Product Width (in) 7.05
Product Weight (lbs) 5.3572
Working Pressure (PSI) 232
Maximum Pressure (PSI) 300
Minimum Temperature (ºF) -20
Working Temperature (ºF) 77
Maximum Temperature (ºF) 347
Unit of Measure EA
Prop65 ID Lead
Warranty Code 1-year limited warranty
Product Type 90 Elbows
Product Material Malleable Iron
Standards NSF/ANSI 372,NSF/ANSI 61,ASME B16.3,FM 1920
