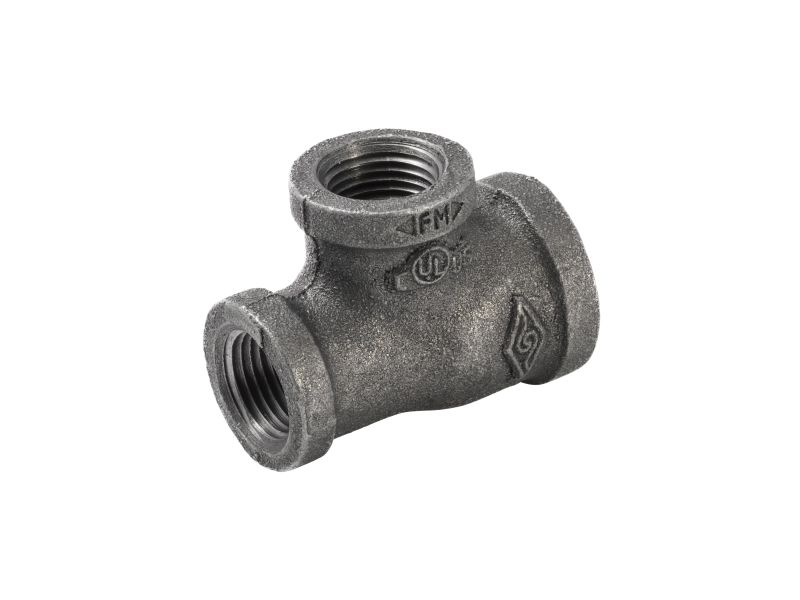

B&K Products 520-433 3/4" X 1/2" X 1/2" Reducing Tee

B&K Products 520-433 3/4" X 1/2" X 1/2" Reducing Tee

Back Order

Get it by Fri, May 30 - Wed, Jun 04

SKU kpi141-520-433

0
(0 rating)
$2.28 USD
$2.28 USD
Sale Sold out
Shipping calculated at checkout.
 More payment options
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Structural Fittings & Pipe Structural Fittings
diameter: 3/4
height: 1.93 "
length: 1.44 "
manufacturer: B&K Products
mpn: 520-433
subcategory: Tees
upc: 032888362123
weight: 0.4006 lbs
width: 2.36 "

Product Description

B&K Products - 520-433 This Reducing Tee allows for connections with two or three different sizes. General uses for this product are for transporting lubricant, oil, grease, LP gases fuel or to create your own DIY projects. This fitting is not designed for potable water applications.

Features
  • Generally used for lubricant, oil, grease, liquefied petroleum (LP) gas, natural gases (nitrogen, oxygen, etc.), steam and diesel
  • 150-lb class malleable fittings
  • Relative softness of metal helps provide a sure seal
  • This fitting works up to 500 PSI at 150°F
  • Threaded ends comply with ANSI/ASME B1.20.1 standards
  • Meet ASTM and ASME standards

Additional Information

Inlet Diameter (in) 3/4
Inlet Connection FIP
Outlet Diameter (in) 1/2
Outlet Connection FIP
Branch 1 Diameter (in) 1/2
Branch 1 Connection FIP
Product Length (in) 1.44
Product Height (in) 1.93
Product Width (in) 2.36
Product Weight (lbs) 0.4006
Working Pressure (PSI) 232
Maximum Pressure (PSI) 300
Minimum Temperature (ºF) -20
Working Temperature (ºF) 77
Maximum Temperature (ºF) 347
Unit of Measure EA
Prop65 ID Lead
Warranty Code 1-year limited warranty
Product Type 3-Way Reducing Tees
Product Material Malleable Iron
Standards ASME B16.3,FM 1920
