B&K Products

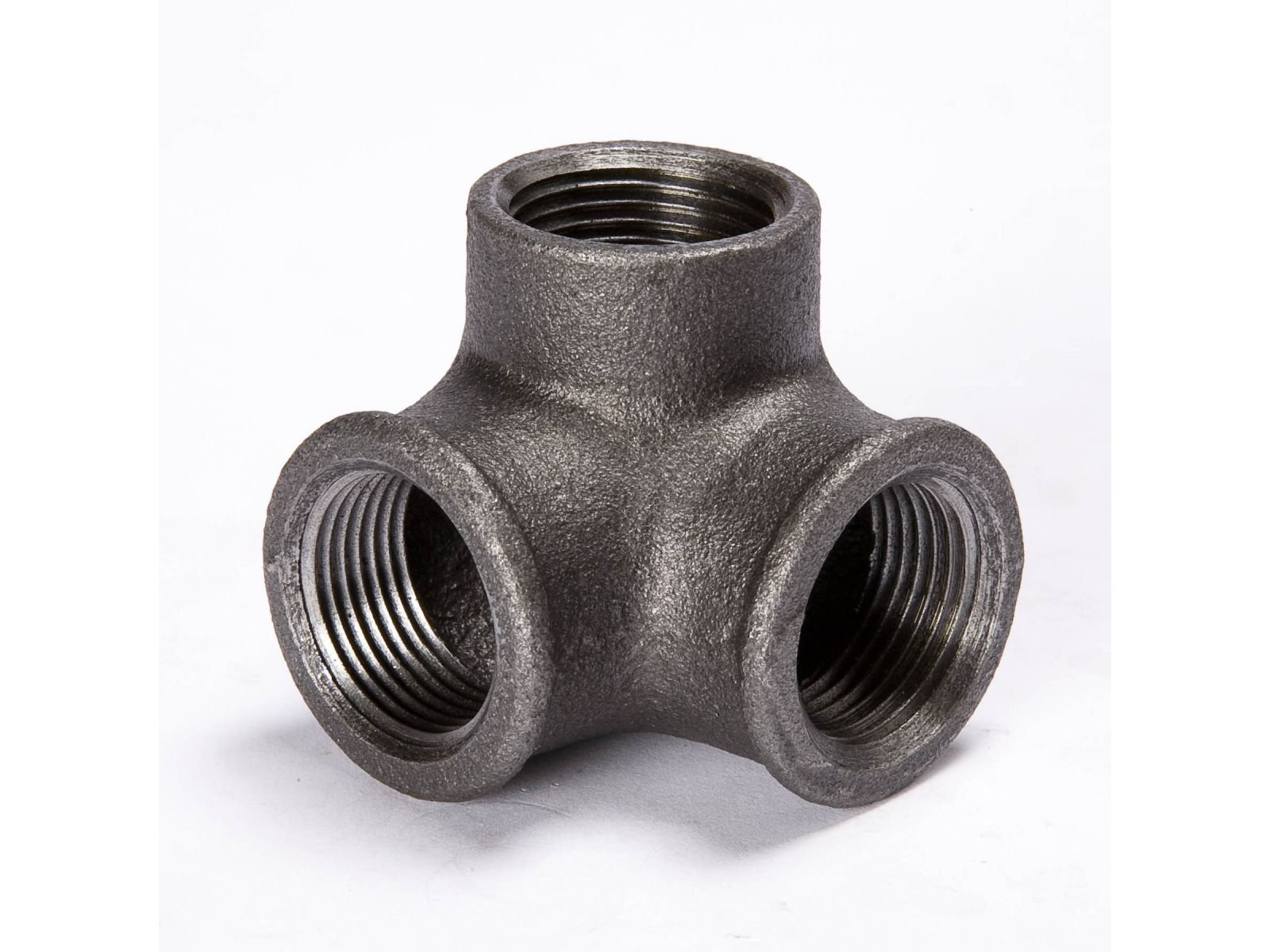

B&K Products 520-805 1" Side Outlet Elbow

B&K Products 520-805 1" Side Outlet Elbow

Dropship

Get it by Sat, Jun 14 - Thu, Jun 19

SKU kpi141-520-805

0
(0 rating)
$7.15 USD
$7.15 USD
Sale Sold out
Shipping calculated at checkout.
 More payment options
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Bath & Kitchen Products
diameter: 1
height: 2.36 "
length: 2.36 "
manufacturer: B&K Products
mpn: 520-805
subcategory: Elbow
upc: 032888370821
weight: 0.7238 lbs
width: 2.36 "

Product Description

B&K Products - 520-805 Side Outlet Elbows are ideal for connecting three piping systems in a corner. Similar to a tee, this fitting is built with all three outlets being FIP end connections. General uses include lubricant, oil, grease, LP gas, natural gases (nitrogen, oxygen, etc.), steam and diesel. This fitting is not designed for potable water applications.

Features
  • Generally used for lubricant, oil, grease, liquefied petroleum (LP) gas, natural gases (nitrogen, oxygen, etc.), steam and diesel
  • 150-lb class malleable fittings
  • Relative softness of metal helps provide a sure seal
  • This fitting works up to 500 PSI at 150°F
  • Threaded ends comply with ANSI/ASME B1.20.1 standards
  • Meet ASTM and ASME standards

Additional Information

Inlet Diameter (in) 1
Inlet Connection FIP
Outlet Diameter (in) 1
Outlet Connection FIP
Branch 1 Diameter (in) 1
Branch 1 Connection FIP
Product Length (in) 2.36
Product Height (in) 2.36
Product Width (in) 2.36
Product Weight (lbs) 0.7238
Working Pressure (PSI) 232
Maximum Pressure (PSI) 300
Minimum Temperature (ºF) -20
Working Temperature (ºF) 77
Maximum Temperature (ºF) 347
Unit of Measure EA
Prop65 ID Lead
Warranty Code 1-year limited warranty
Product Type Side Outlet Elbow
Product Material Malleable Iron
Standards FM 1140,NSF/ANSI 372,NSF/ANSI 61,ASME B16.3
