category:
Industrial Belts
country_of_origin:
TW
height:
0.098
length:
10.6
manufacturer:
Bando
mpn:
106H9U
no_of_ribs:
9
subcategory:
Timing Belts
type:
Synchro-Link Standard Polyurethane (RMA)
width:
0.567
Product Overview

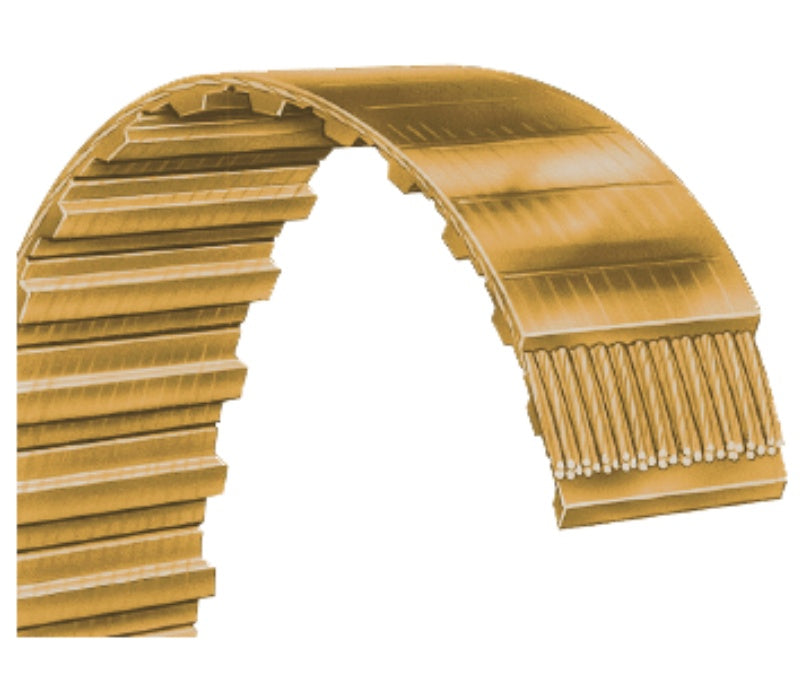

Bando - 106H9U Polyurethane timing belts provide a lightweight drive system, when used with aluminum or plastic pulleys, and exceptionally quiet operation. They are ideal for applications needing high oil and ozone resistance, and their extremely clean operation make them suitable for appliance and office machine use. Metric sizes are often found on imported textile machinery.
- Fiberglass tensile cord for increased flexibility and greater durability.
- Body is made from the highest quality polyurethane for maximum oil and ozone resistance. Non-static conductive.
- Strong fiberglass cords oriented in an S and Z configuration, which won™t stretch or fatigue over the life of the belt, provide high load carrying capacity and superior tooth shear strength under shock load applications.
Additional Information
Price Class608
Weight (lbs)0.015
Multiplier0.3885
Belt Width (In)0.567
Belt Width (mm)14.4
ColorSemi Translucent Amber
Ribs/Teeth/Angle9
CordPoly
Height (In)0.098
Height (mm)2.5
MaterialPolyurethane
Nominal Outside Length (In)10.6
Nominal Outside Length (mm)269.2
SectionH
Number of Ribs9
