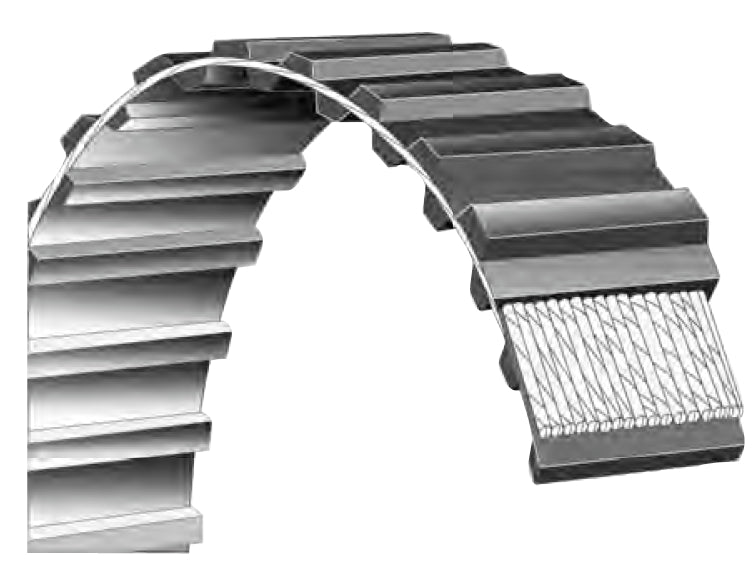

Bando - 10T5-375UG An ideal selection for serpentine drives where extremely clean, quiet operation is required. Precision molded to ensure mirror image top and bottom tooth alignment for precise symmetry and synchronization.
¢ Top quality oil and ozone resistant polyurethane provides clean running operation and exceptionally long belt life.
¢ Strong fiberglass cords assure length stability and stand up to high horsepower loads.
¢ Extremely clean operation makes these belts ideally suited for appliance and office equipment applications.
Additional Information
Price Class550
Weight (lbs)0.0152
Number of Teeth75
Tooth Pitch (In)0.1969
Tooth Pitch (mm)5
Tooth ProfileT5
Multiplier0.4556
Belt Width (In)0.394
Belt Width (mm)10
ColorSemi Translucent Amber
Ribs/Teeth/Angle75
CordFiberglass
Height (In)0.0866
Height (mm)2.2
MaterialPolyurethane
Nominal Outside Length (In)14.7638
Nominal Outside Length (mm)375
CategoryIndustrial Belts
Country of originTW
Height2.2
Length375
ManufacturerBando
Mpn10T5-375UG
No of ribs75
SubcategoryTiming Belts
TypeSynchro-Link Standard Polyurethane (Metric)
Width10
