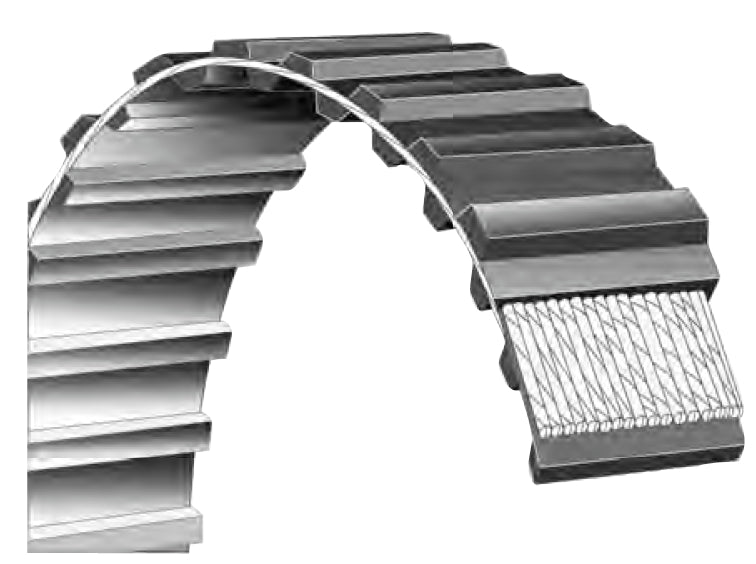

Bando - 120T5-900UG An ideal selection for serpentine drives where extremely clean, quiet operation is required. Precision molded to ensure mirror image top and bottom tooth alignment for precise symmetry and synchronization.
¢ Top quality oil and ozone resistant polyurethane provides clean running operation and exceptionally long belt life.
¢ Strong fiberglass cords assure length stability and stand up to high horsepower loads.
¢ Extremely clean operation makes these belts ideally suited for appliance and office equipment applications.
Additional Information
Price Class550
Weight (lbs)0.4374
Number of Teeth180
Tooth Pitch (In)0.1969
Tooth Pitch (mm)5
Tooth ProfileT5
Multiplier0.4556
Belt Width (In)4.724
Belt Width (mm)120
ColorSemi Translucent Amber
Ribs/Teeth/Angle180
CordFiberglass
Height (In)0.0866
Height (mm)2.2
MaterialPolyurethane
Nominal Outside Length (In)35.4331
Nominal Outside Length (mm)900
CategoryIndustrial Belts
Country of originTW
Height2.2
Length900
ManufacturerBando
Mpn120T5-900UG
No of ribs180
SubcategoryTiming Belts
TypeSynchro-Link Standard Polyurethane (Metric)
Width120
