category:
Industrial Belts
country_of_origin:
TW

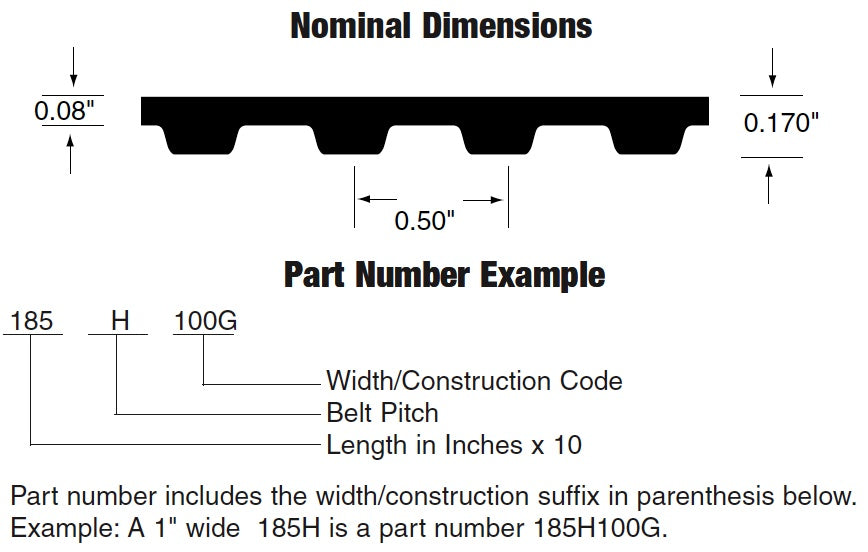

height:
0.17
length:
22.5
manufacturer:
Bando
mpn:
225H100G
no_of_ribs:
45
subcategory:
Timing Belts
type:
Synchro-Link Standard Neoprene (RMA)
width:
1
Product Description

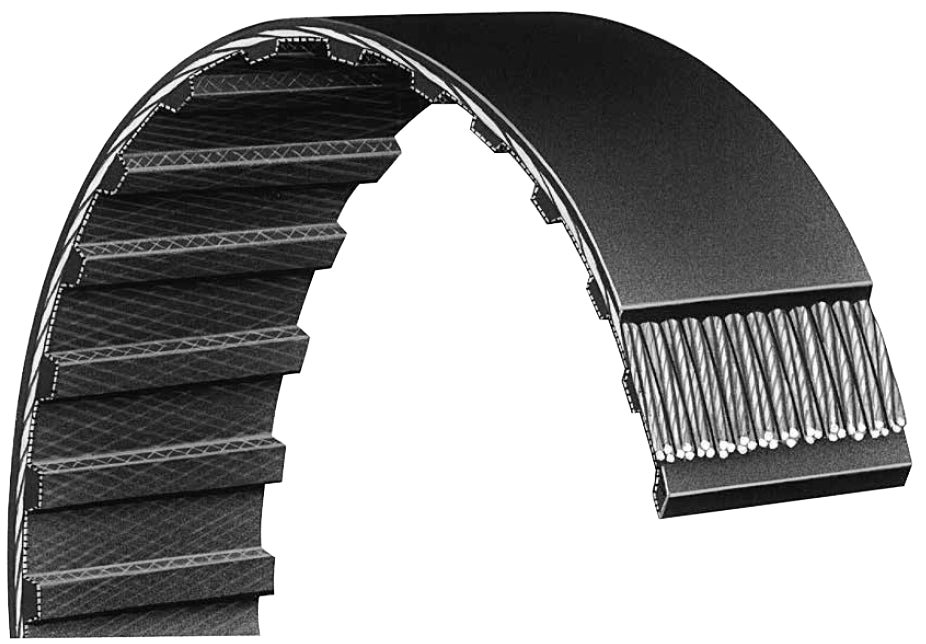

Bando - 225H100G The extra durable, highly flexible neoprene backing provides excellent abrasion and wear resistance ” especially important if power is transmitted from the back of the belt. Backing also guards the tensile cords against oil, grease, dirt, and moisture.
- Continuous, helically-wound high strength fiberglass tensile cords guarantee dimensional stability to eliminate take-up adjustments. Heavy torque loads won™t fatigue this super strong cord. S and Z orientation of the cords aid in minimizing belt tracking problems.
- Precision formed, oil and heat resistant neoprene teeth have a shear resistance equal to the tensile strength of the belt (under standard 6 teeth in mesh tests). Tooth design and tight manufacturing tolerances provide full surface contact between belt and pulley for smooth running characteristics.
- The tooth surface is protected by a low friction, clean running, wear resistant woven nylon facing. Seamless construction eliminates vibration.
Additional Information
Bore0.5
Outside Diameter w/o Flange2.753
Price Class501
Weight (lbs)0.1373
Number of Teeth45
Pitch Diameter2.807
Tooth Pitch (In)0.5
Tooth Pitch (mm)12.7
Tooth ProfileH
Multiplier0.3345
Belt Width (In)1
Belt Width (mm)25.4
ColorBlack
Ribs/Teeth/Angle45
CordFiberglass
Height (In)0.17
Height (mm)4.3
MaterialNeoprene
Nominal Outside Length (In)22.5
Nominal Outside Length (mm)571.5
