category:
Industrial Belts
country_of_origin:
TW
height:
7
length:
2180
manufacturer:
Bando
mpn:
4-11MS2180
no_of_ribs:
4
subcategory:
V-Belts
type:
Banflex Combo Metric-V Polyurethane
width:
24.4
Product Description

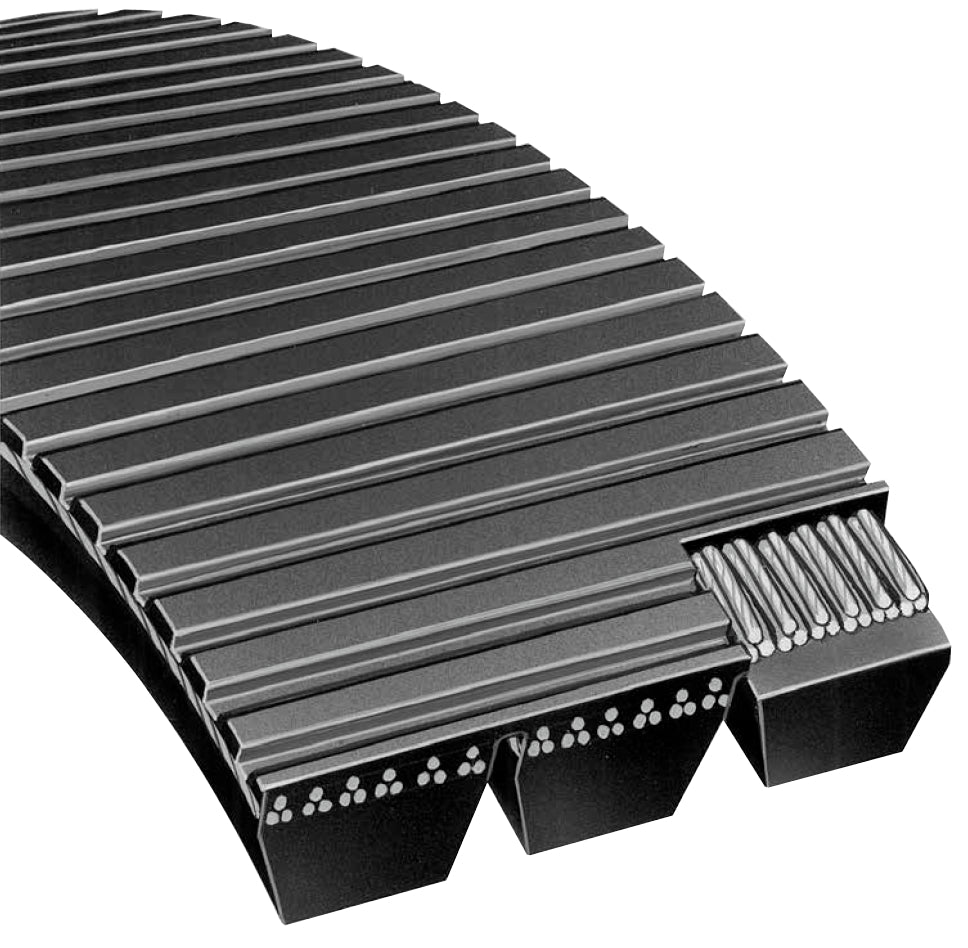

Bando - 4-11MS2180 Ideally suited for short center distances and small diameter pulleys, BanFlex® Combos™ banded construction minimizes or eliminates the turnover problem normally associated with small cross section belts. The ribbed construction provides superior flexibility while maintaining lateral stability.
- Precision molded, seamless polyurethane ribs provide maximum resistance to oil and traditional lubricants with virtually vibration free operation.
- Treated polyester tensile cords resist fatigue and stretch as well as providing exceptional length stability and drive uniformity.
- Polyamid tie band prevents belt whip under impulse loads.
- Polyurethane ribs on the back of the belt provide rigidity across the width of the belt and dissipate heat, leading to longer belt life.
Additional Information
Price Class621
Weight (lbs)1.4109
Multiplier0.3732
Belt Width (In)0.961
Belt Width (mm)24.4
ColorBlack
Ribs/Teeth/Angle4
Height (In)0.2756
Height (mm)7
Nominal Outside Length (In)85.8268
Nominal Outside Length (mm)2180

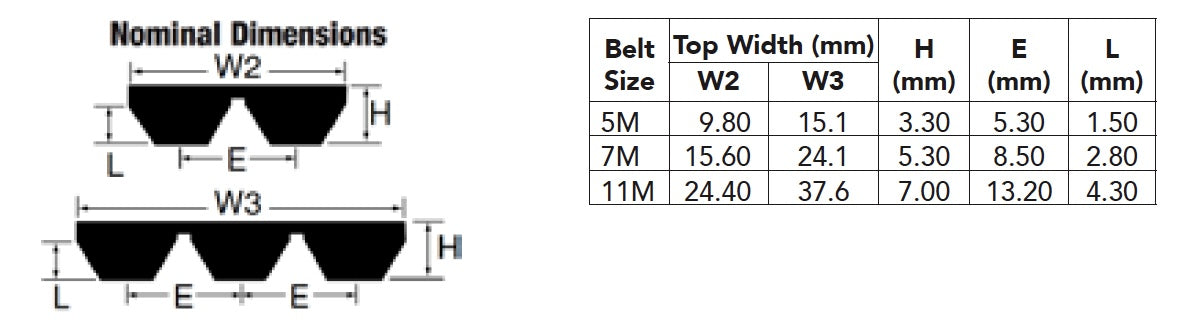

Section11M
Number of Ribs4
