country_of_origin:
TW
height:
2.4
length:
564
manufacturer:
Bando
mpn:
564-3M-9
no_of_ribs:
188
weight:
0.0254
width:
9
Product Description

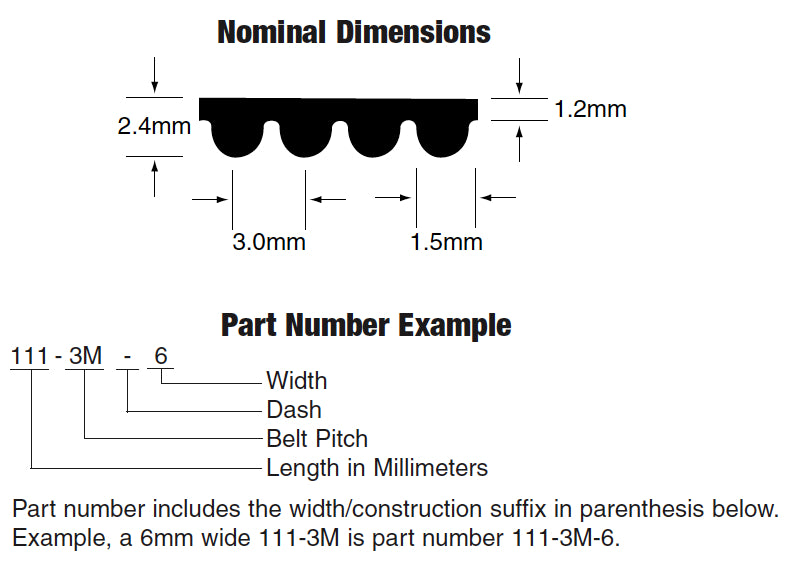

Bando - 564-3M-9 Synchro-Link® HT (High Torque Synchronous) belts' curvilinear tooth design improves stress distribution to provide high horsepower ratings over a wide speed range and high torque transmission at low speeds.
- The rounded tooth profile meshes precisely with matching pulley grooves so there is no belt creep or slip to cause speed variation.
- HT belt drives are 99% efficient, leading to significant energy savings on high horsepower applications.
- HT belts are thin and flexible so they do not generate heat build up, delivering long service life.
- Continuous, helically-wound S and Z oriented fiberglass cord is the load-carrying muscle of the belt, resisting elongation and shock loads while providing excellent strength and service life.
