category:
Industrial Belts
country_of_origin:
TW
height:
0.39
length:
63.63
manufacturer:
Bando
mpn:
8-3V630
no_of_ribs:
8
subcategory:
V-Belts
type:
Power Ace Combo Narrow
width:
3.28
Product Description

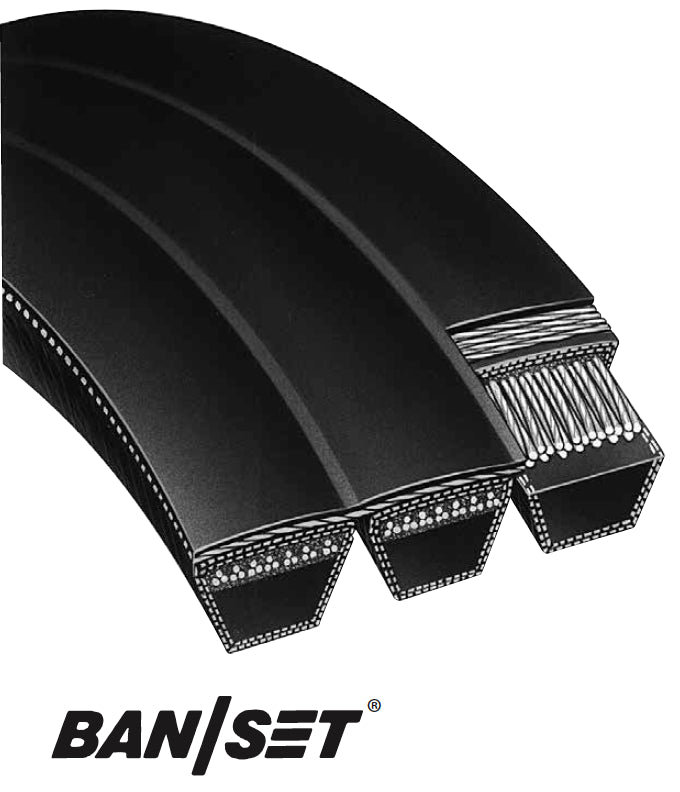

Bando - 8-3V630 To resolve problem applications where belts are flipping over or jumping out of the sheaves, utilize Bando™s series of Combo belts. The tie band assures lateral rigidity and guides the belts into the sheave grooves.
- The tie band, reinforced with high strength transverse tensile cords, is fully oil and heat resistant and permanently welds the individual belts together.
- Combos utilize the premium quality Power King® and Power Ace® belts, with all of their features and benefits.
- Assures equal load distribution in drives where high shock or pulsating loads cause belts to whip, flip over, or jump out of the sheave grooves.
- Combos are ideal for use on vertical shaft drives.
- Meets ARPM standards for oil and heat resistance and static conductivity.
Additional Information
Price Class602
Weight (lbs)3.024
Multiplier0.6051
Belt Width (In)3.28
Belt Width (mm)83.3
ColorBlack
Ribs/Teeth/Angle8
Height (In)0.39
Height (mm)9.9
Nominal Outside Length (In)63.63
Nominal Outside Length (mm)1616.2
Section3V
Number of Ribs8
