category:
Rigging & Lifting Products
country_of_origin:
USA
manufacturer:
Block Division
mpn:
01548-2
subcategory:
Pulleys
type:
Swivel Eye Pulleys
weight:
0.65
Product Description

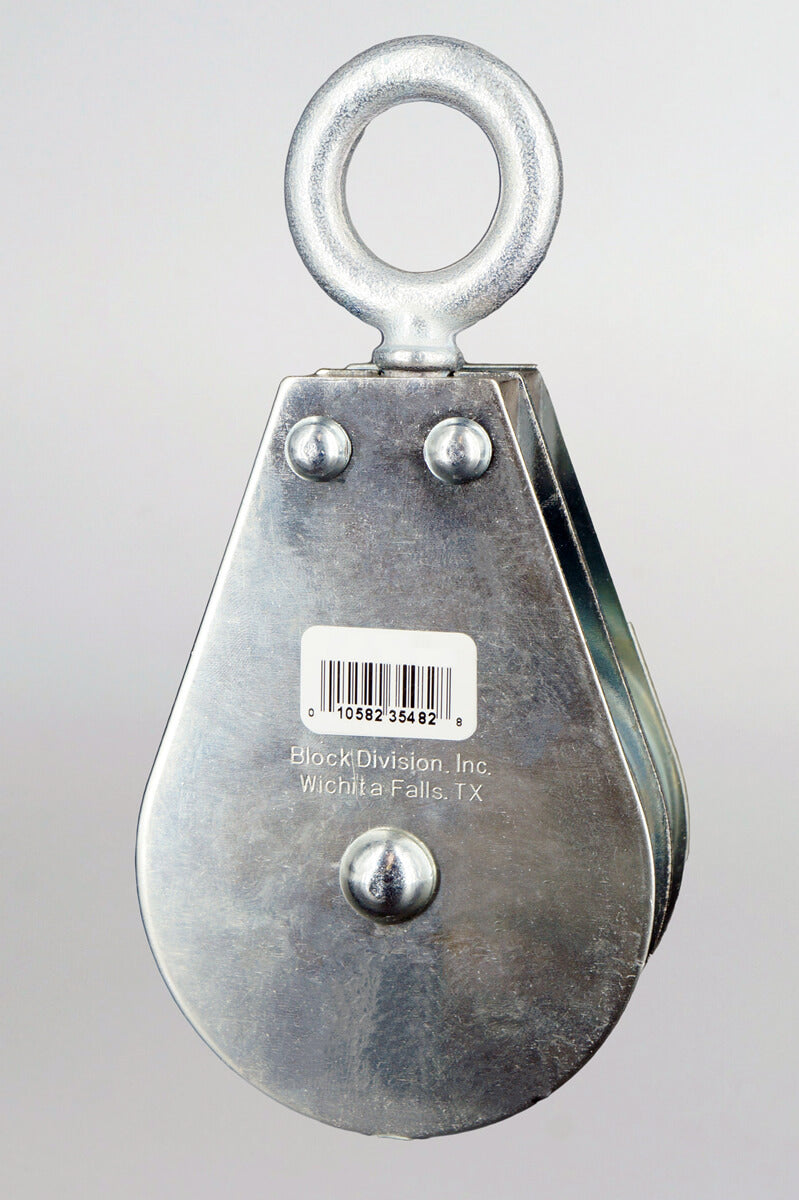

Block Division - 01548-2 1-1/2″ Swivel eye pulley block, industrial quality, forged eye, double 7/16 wide machined sheaves, oil impregnated bushing grooved for 3/16 wire rope; Clear zinc finish finish; safe work load of 525 lbs; weight 0.65 lb. Options include: change the center rivet to be a removable pin/snatch; change the fastener located in the center of the pulley from a rivet to a bolt (F1); change the 2 fasteners located at the top from rivets to bolts (F2); change all 3 fasteners from rivets to bolts (F3).Dimensions in inches are approximate.
| Max Cable | 3/16" |
| Working Load | 525 LBS |
| A | 1" |
| B | 1-1/2" |
| C | 7/16" |
| D | 1-1/4" |
| E | 5/8" |
| F | 3-13/16" |
| G | 2-7/16" |
| H | 1-5/8" |
| Y | 1-7/32" |
| Weight Each | 0.65 lb |
