category:
Rigging & Lifting Products
country_of_origin:
USA
manufacturer:
Block Division
mpn:
01558-2-SN-SS
subcategory:
Pulleys
type:
Flat Mount Pulleys
weight:
0.45
Product Description

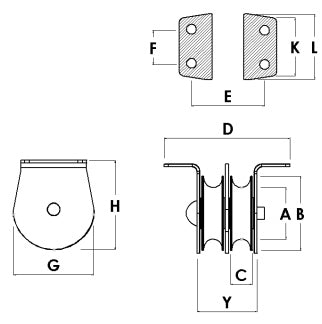

Block Division - 01558-2-SN-SS 1.5″ Flat mount pulley block with removable snatch pin; double 7/16″ wide machine sheaves with oil impregnated bushing grooved for 3/16″ maximum cable or wire rope or fibrous rope or fibrous rope diameter; Clear stainless steel finish; heavy duty, industrial quality; 525 lbs working load capacity; weight 0.45 lbs. The mounting hole size is 3/16″. The mounting hole size is 3/16″.
| Max Cable | 3/16" |
| Working Load | 525 LBS |
| A | 1" |
| B | 1-1/2" |
| C | 7/16" |
| D | 2-9/16" |
| E | 2" |
| F | 3/4" |
| G | 1-5/8" |
| H | 1-7/8" |
| K | 1-1/8" |
| L | 1-3/8" |
| Y | 1-7/32" |
| Weight Each | 0.45 lb |
