category:
Rigging & Lifting Products
country_of_origin:
USA
manufacturer:
Block Division
mpn:
01558-3
subcategory:
Pulleys
type:
Flat Mount Pulleys
weight:
0.65
Product Description

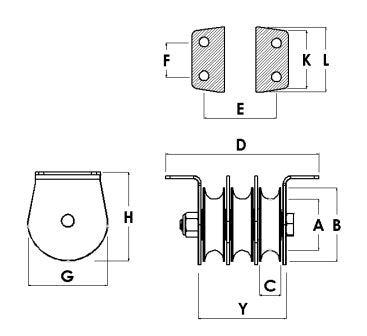

Block Division - 01558-3 1.5″ Flat mount pulley block, industrial quality, triple 7/16 wide machined sheaves, oil impregnated bushing grooved for 3/16 wire rope; locking nuts and bolts; clear galvenized zinc; safe work load of 525 lbs; weight 0.65 lb. The mounting hole size is 3/16″.Dimensions in inches are approximate.
| Max Cable | 3/16" |
| Working Load | 525 LBS |
| A | 1" |
| B | 1-1/2" |
| C | 7/16" |
| D | 3-1/16" |
| E | 2-9/16" |
| F | 11/16" |
| G | 1-5/8" |
| H | 1-7/8" |
| K | 1-1/8" |
| L | 1-3/8" |
| Y | 1-3/4" |
| Weight Each | 0.65 lb |
