category:
Rigging & Lifting Products
country_of_origin:
USA
manufacturer:
Block Division
mpn:
01568-3
subcategory:
Pulleys
type:
Fixed Eye Pulleys
weight:
1.00
Product Description

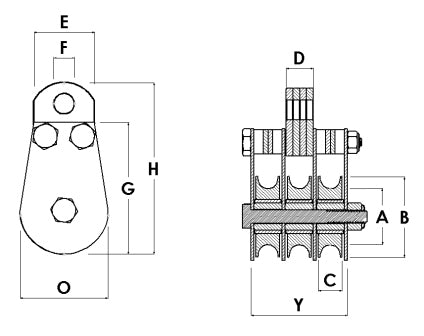

Block Division - 01568-3 1.5″ Fixed eye pulley block, industrial quality, forged eye, triple 7/16 wide machined sheaves, oil impregnated bushing grooved for 3/16 wire rope; locking nuts and bolts; clear galvenized zinc finish; safe work load of 525 lbs; weight 1.00 lbs.Dimensions in inches are approximate.
| Max Cable | 3/16" |
| Working Load | 525 LBS |
| A | 1" |
| B | 1-1/2" |
| C | 7/16" |
| D | 1/2" |
| E | 1-1/8" |
| F | 3/8" |
| G | 2-7/16" |
| H | 3-1/4" |
| O | 1-5/8" |
| Y | 1-3/4" |
| Weight Each | 1.00 LBS |
