category:
Rigging & Lifting Products
country_of_origin:
USA
manufacturer:
Block Division
mpn:
02068-SS
subcategory:
Pulleys
type:
Fixed Eye Pulleys
weight:
0.70
Product Description
Block Division - 02068-SS 2″ Fixed Eye pulley block with removable snatch pin, 600 lbs working load capacity, 7/16″ wide machined sheave with oil impregnated bushing, grooved for 3/16″ maximum cable or wire rope diameter; 3/8 inch interior eye diameter; stainless steel finish; heavy duty, industrial quality; weight 0.70 lbs.

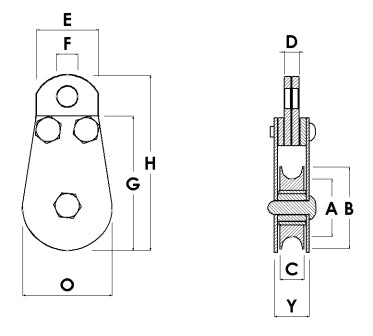

| Max Cable | 3/16" |
| Working Load | 600 LBS |
| A | 1-1/2" |
| B | 2" |
| C | 7/16" |
| D | 1/4" |
| E | 1-1/8" |
| F | 3/8" |
| G | 2-15/16" |
| H | 3-3/4" |
| O | 2-1/8" |
| Y | 3/5" |
| Weight Each | 0.70 lb |
