category:
Rigging & Lifting Products
country_of_origin:
USA
manufacturer:
Block Division
mpn:
02078-2
subcategory:
Pulleys
type:
Swivel Hook Pulleys
weight:
1.05
Product Description

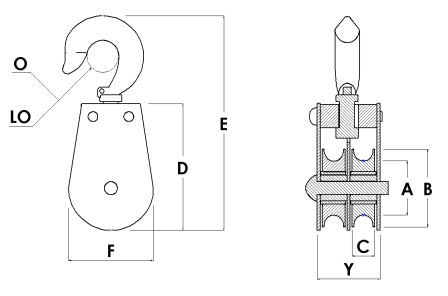

Block Division - 02078-2 2″ Swivel Hook pulley block, industrial quality, forged hook, double 7/16 wide machined sheaves, oil impregnated bushing grooved for 3/16 wire rope; Clear zinc finish; safe work load of 600 lbs; weight 1.05 lbs.Options include: change the center rivet to be a removable pin/snatch; add a steel latch; change the fastener located in the center of the pulley from a rivet to a bolt (F1); change the 2 fasteners located at the top from rivets to bolts (F2); change all 3 fasteners from rivets to bolts (F3).Dimensions in inches are approximate.
| Max Cable | 3/16" |
| Working Load | 600 LBS |
| A | 1-1/2" |
| B | 2" |
| C | 7/16" |
| D | 2-15/16" |
| E | 4-5/8" |
| F | 2-1/8" |
| LO | 5/16" |
| O | 7/16" |
| Y | 1-7/32" |
| Weight Each | 1.05 LBS |
