category:
Rigging & Lifting Products
country_of_origin:
USA
manufacturer:
Block Division
mpn:
02558-1/8
subcategory:
Pulleys
type:
Flat Mount Pulleys
weight:
0.80
Product Description
Block Division - 02558-1/8 2.5″ Flat mount pulley block, industrial quality, 7/16 wide machined sheave; oil impregnated bushing grooved for 1/8″ wire rope. Clear galvenized zinc finish; safe work load of 685 lbs; weight 0.80 lb. The mounting hole size is 3/16″. Options include: change the center rivet to be a removable pin/snatch; change the fastener located in the center of the pulley from a rivet to a bolt (F1).Dimensions in inches are approximate.

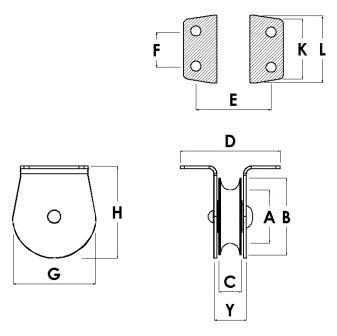

| Max Cable | 1/8" |
| Working Load | 685 LBS |
| A | 2-1/4" |
| B | 2-1/2" |
| C | 7/16" |
| D | 2" |
| E | 1-7/16" |
| F | 11/16" |
| G | 2-5/8" |
| H | 2-15/16" |
| K | 1-1/8" |
| L | 1-5/8" |
| Weight Each | 0.80 LB |
