category:
Rigging & Lifting Products
country_of_origin:
USA
manufacturer:
Block Division
mpn:
02558-2-SN-SS
subcategory:
Pulleys
type:
Flat Mount Pulleys
weight:
1.30
Product Description

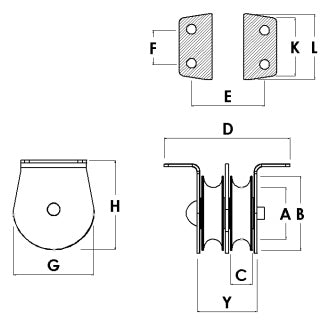

Block Division - 02558-2-SN-SS 2-1/2″ Flat mount pulley block with removable snatch pin; double 7/16″ wide machine sheaves with oil impregnated bushing, grooved for 1/4″ maximum cable or wire rope or fibrous rope diameter; stainless steel finish; heavy duty, industrial quality; 685 lbs working load capacity; weight 1.30 lbs. The mounting hole size is 3/16″.
| Max Cable | 1/4" |
| Working Load | 685 LBS |
| A | 2" |
| B | 2-1/2" |
| C | 7/16" |
| D | 2-9/16" |
| E | 2" |
| F | 3/4" |
| G | 2-5/8" |
| H | 2-15/16" |
| K | 1-1/8" |
| L | 1-5/8" |
| Y | 1-7/32" |
| Weight Each | 1.30 LBS |
