category:
Rigging & Lifting Products
country_of_origin:
USA
manufacturer:
Block Division
mpn:
02568-3
subcategory:
Pulleys
type:
Fixed Eye Pulleys
weight:
2.15
Product Description

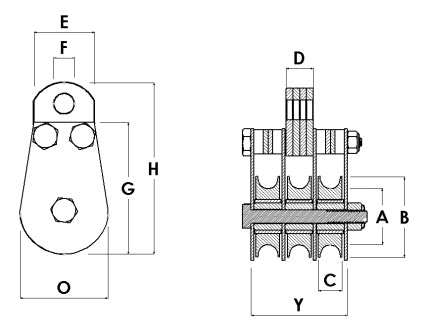

Block Division - 02568-3 2.5″ Fixed eye pulley block, industrial quality, forged eye, triple 7/16 wide machined sheave with oil impregnated bushing grooved for 1/4″ wire ropes; locking nuts and bolts; clear zinc finish; safe work load of 685 lbs; weight 2.15 lbs.Dimensions in inches are approximate.
| Max Cable | 1/4" |
| Working Load | 685 LBS |
| A | 2" |
| B | 2-1/2" |
| C | 7/16" |
| D | 1/4" |
| E | 1-1/8" |
| F | 3/8" |
| G | 3-7/16" |
| H | 4-1/4" |
| O | 2-5/8" |
| Y | 1-3/4" |
| Weight Each | 2.15 lbs |
