category:
Rigging & Lifting Products
country_of_origin:
USA
manufacturer:
Block Division
mpn:
02568-SS
subcategory:
Pulleys
type:
Fixed Eye Pulleys
weight:
1.00
Product Description
Block Division - 02568-SS 2-1/2″ Fixed Eye pulley block with removable snatch pin, 685lbs working load capacity, 7/16″ wide machined sheave with oil impregnated bushing, grooved for 3/16″ maximum cable or wire rope diameter; 3/8 inch interior eye diameter; stainless steel finish; heavy duty, industrial quality; weight 3.1 lbs.

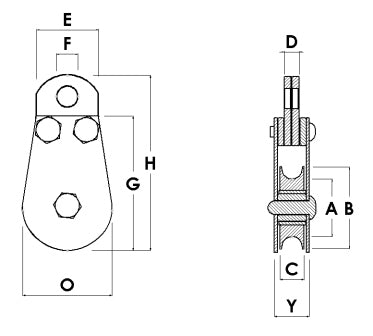

| Max Cable | 1/4" |
| Working Load | 685 LBS |
| A | 2" |
| B | 2-1/2" |
| C | 7/16" |
| D | 1/4" |
| E | 1-1/8" |
| F | 3/8" |
| G | 3-7/16" |
| H | 4-1/4" |
| O | 2-5/8" |
| Y | 3/5" |
| Weight Each | 1.00 LB |
