category:
Rigging & Lifting Products
country_of_origin:
USA
manufacturer:
Block Division
mpn:
02578-3
subcategory:
Pulleys
type:
Swivel Hook Pulleys
weight:
2.30
Product Description
Block Division - 02578-3 2.5″ Swivel Hook pulley block, industrial quality, forged hook, triple 7/16 wide machined sheave with oil impregnated bushing grooved for 1/4″ wire ropes; locking nuts and bolts; Clear zinc finish; safe work load of 685 lbs; weight 2.30 lbs. Optional steel latch available.Dimensions in inches are approximate.

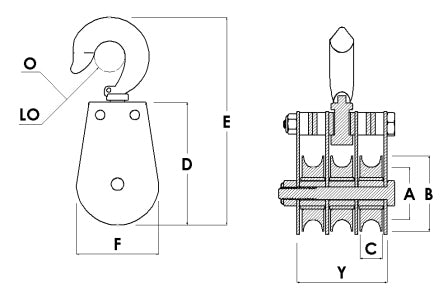

| Max Cable | 1/4" |
| Working Load | 685 LBS |
| A | 2" |
| B | 2-1/2" |
| C | 7/16" |
| D | 3-7/16" |
| E | 5-3/4" |
| F | 2-5/8" |
| LO | 5/8" |
| O | 1/2" |
| Y | 1-3/4" |
| Weight Each | 2.30 LBS |
