category:
Rigging & Lifting Products
country_of_origin:
USA
manufacturer:
Block Division
mpn:
03048-5/16-2
subcategory:
Pulleys
type:
Swivel Eye Pulleys
weight:
2.15
Product Description

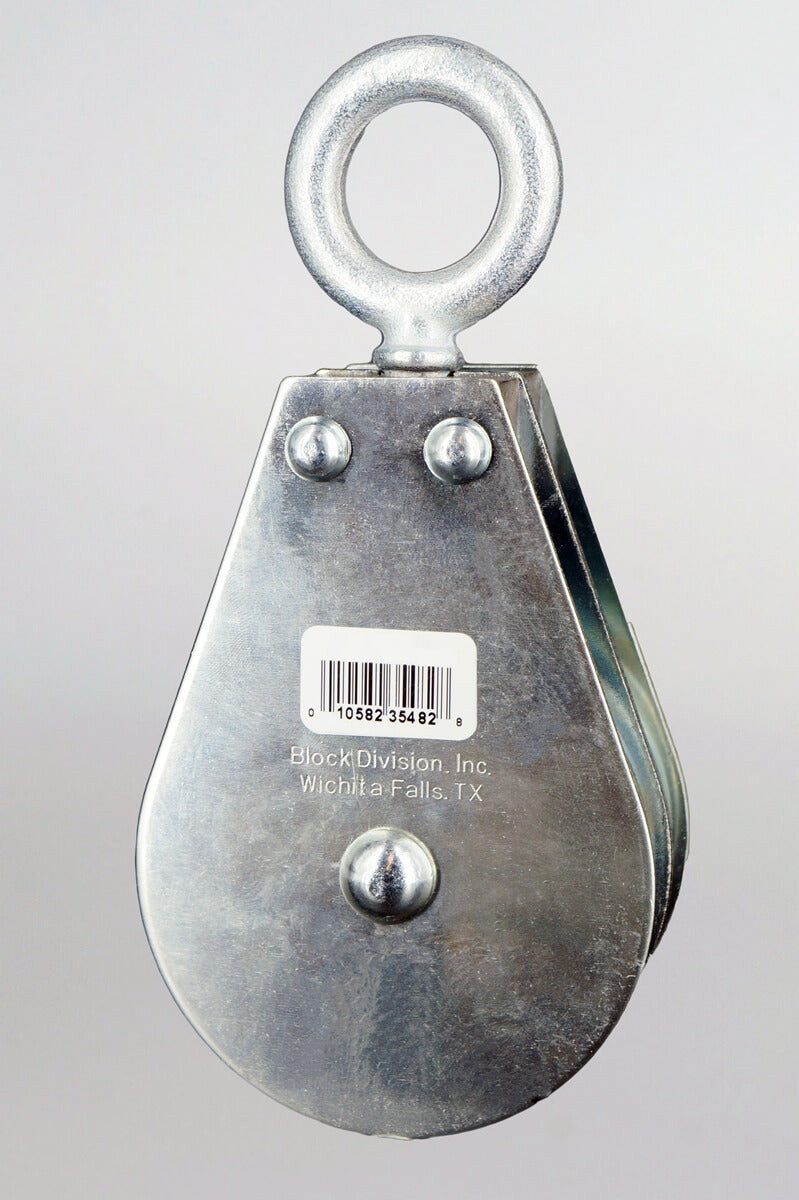

Block Division - 03048-5/16-2 3″ Swivel eye pulley block, industrial quality, forged eye, double, 7/16 wide machined sheave with oil impregnated bushing grooved for 5/16″ wire rope. Clear zinc finish; safe work load of 800 lbs; weight 2.15 lbs. Options include: change the center rivet to be a removable pin/snatch; change the fastener located in the center of the pulley from a rivet to a bolt (F1); change the 2 fasteners located at the top from rivets to bolts (F2); change all 3 fasteners from rivets to bolts (F3).Dimensions in inches are approximate.
| Max Cable | 5/16" |
| Working Load | 800 LBS |
| A | 2-1/2" |
| B | 3" |
| C | 7/16" |
| D | 1-1/2" |
| E | 7/8" |
| F | 5-5/8" |
| G | 4-1/16" |
| H | 3-1/8" |
| Y | 1-7/32" |
| Weight Each | 2.15 lbs |
