category:
Rigging & Lifting Products
country_of_origin:
USA
manufacturer:
Block Division
mpn:
03048-BLT
subcategory:
Pulleys
type:
Bolt Pulleys
weight:
1.40
Product Description

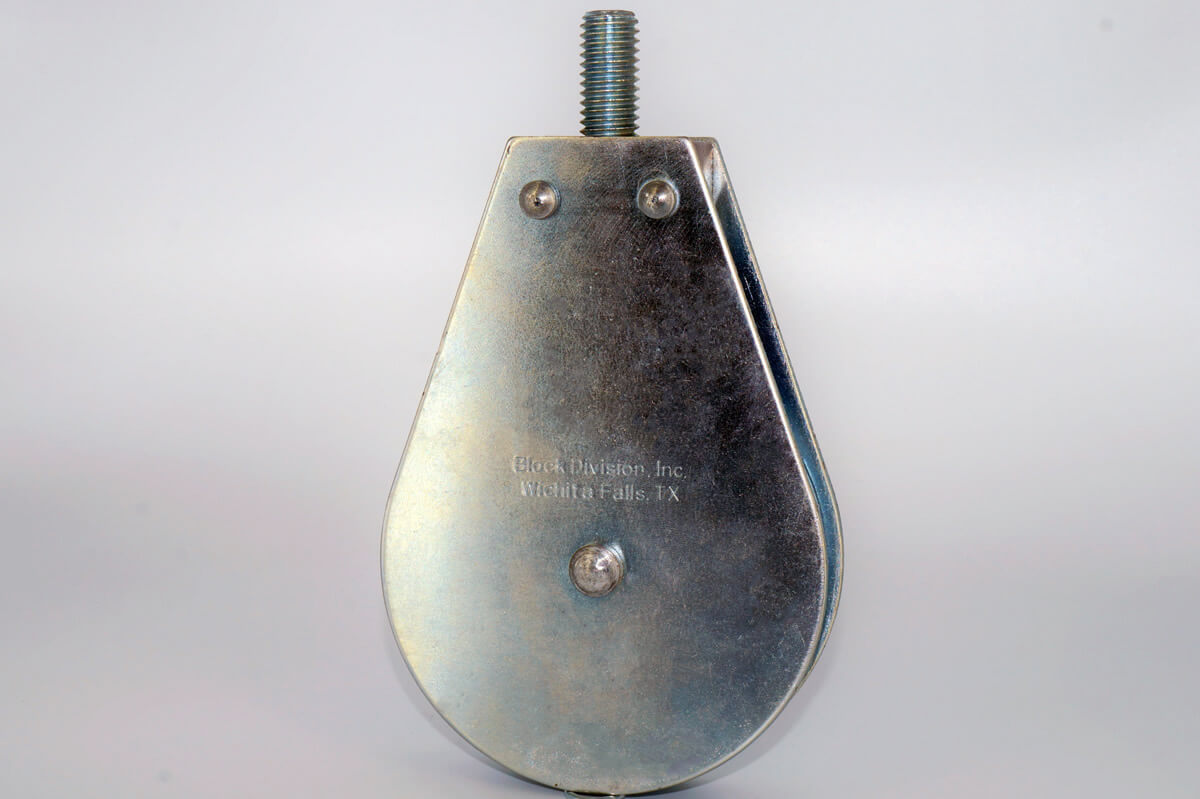

Block Division - 03048-BLT 3″ sheave, 5/16″ bolt, customer specifies the length, course or fine thread pulley block pulley block, industrial quality, 7/16 inch wide machined sheave with oil impregnated bushing grooved for 1/4″ cable, wire or fibrous rope. Clear zinc finish; safe work load of 800 lbs; weight 1.4 lbs. When ordering the bolt pulley block product, please indicate the size of “E” (see chart) you’ll need. Also indicate whether you want NC (national course) or NF (national fine) thread count.Dimensions in inches are approximate.
| Max Cable | 1/4" |
| Working Load | 800 LBS |
| A | 2-1/2" |
| B | 3" |
| C | 7/16" |
| D | 5/16" |
| E | 2-1/2" NC |
| F | 5-5/8" |
| G | 4-1/16" |
| H | 3-1/8" |
| Weight Each | 1.4 lbs |
