category:
Rigging & Lifting Products
country_of_origin:
USA
manufacturer:
Block Division
mpn:
03058-3-SS
subcategory:
Pulleys
type:
Flat Mount Pulleys
weight:
2.75
Product Description

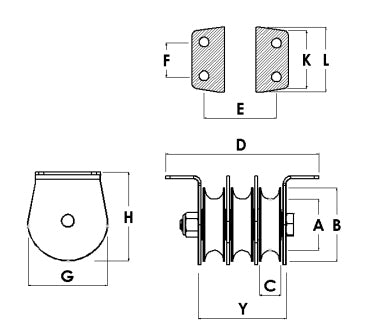

Block Division - 03058-3-SS 3″ Flat mount pulley block, industrial quality, triple 7/16 wide machined sheave; oil impregnated bushing grooved for 1/4″ wire ropes; stainless steel finish; safe work load of 800 lbs; weight weight 2.75 lbs. The mounting hole size is 3/16″.Dimensions in inches are approximate.
| Max Cable | 1/4" |
| Working Load | 800 LBS |
| A | 2-1/2" |
| B | 3" |
| C | 7/16" |
| D | 3-1/16" |
| E | 2-9/16" |
| F | 11/16" |
| G | 3-1/8" |
| H | 3-9/16" |
| K | 1-1/8" |
| L | 1-3/4" |
| Y | 1-3/4" |
| Weight Each | 2.75 LBS |
