category:
Rigging & Lifting Products
country_of_origin:
USA
manufacturer:
Block Division
mpn:
03068-3
subcategory:
Pulleys
type:
Fixed Eye Pulleys
weight:
3.10
Product Description
Block Division - 03068-3 3″ Fixed eye pulley block, industrial quality, forged eye, triple 7/16 wide machined sheave; oil impregnated bushing grooved for 1/4″ wire ropes; locking nuts and bolts; clear galvenized zinc finish; safe work load of 800 lbs; weight 3.10 lbs.Dimensions in inches are approximate.

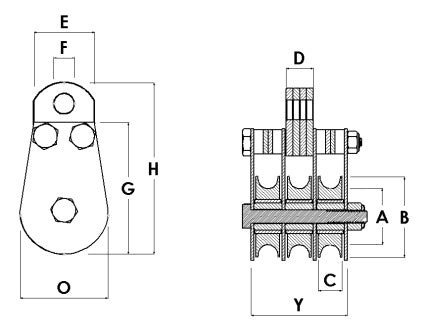

| Max Cable | 1/4" |
| Working Load | 800 LBS |
| A | 2-1/2" |
| B | 3" |
| C | 7/16" |
| D | 1/4" |
| E | 1-1/8" |
| F | 3/8" |
| G | 4-1/16" |
| H | 4-13/16" |
| O | 3-1/8" |
| Y | 1-3/4" |
| Weight Each | 3.10 lbs |
